TR-880T double wire twisting and stripping machine
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-880T
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 21:20:28 GMT
Paramtents
Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
-
Min Order1 piece
Briefing

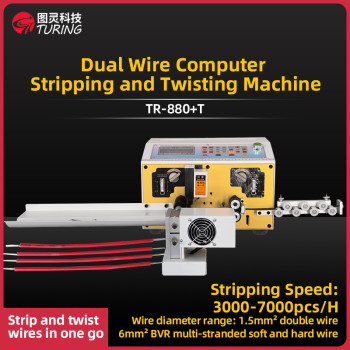

TR-880T double wire twisting and stripping machine
Coco 0086-18666170785
Coco 0086-18666170785
Detailed
TR-880T double wire twisting and stripping machine
Supply Voltage:AC220V/110V 50/60Hz
Rating power:220W
Size&weight:L400xW320xH250mm,48kg
Stripping speed:3000-7000pcs/H
Cutting length:1-9999mm
Memory function:Storage of 99 programmes
Drive method:four wheel drive
Catheter Diameter:1-6mm
Cutting length tolerance:±0.002*L
Blade Material:Tungsten steel,
white steel
Display Mode:Chinese and English LCD
Number of intermediate
peeling segments:13
Wire Type:Suitable for 1.5mm² double wire, 6mm² BVR multi-stranded soft and
hard wires, PVC electronic wires, glass fibre wires, Teflon wires, etc.
Strip length at both ends:Wire head 1-30mm, wire tail 1-20mm is best
Characteristics
This equipment is fully computer controlled and key operated. High-speed wirestripping can be set at any length of stripped wire, stripped head length or halfstripped length,reduce costs, durable.
-Suitable for cutting 2.5mm² double wire, 6mm2 single wire multi-stranded copperwire, can also be used for cutting heat-shrinkable tubing, PVC hose, etc.”
-Programme memory function, can store 99 groups of programmes, when cuttingdifferent wires, just call out the corresponding programme number, no need torepeat the settings;
-Support full stripping, half stripping, middle stripping and other stripping methods;
Support full stripping, half stripping, middle stripping and other stripping methods.
-Computerised wire stripping machine is driven by high precision stepping motor,and the amount of pulse can be corrected through the program, which can achievevery high precision of wire cutting;
-Ultra-short wire function, can process ultra-short wire, such as the total length ofonly 10mm or less wire, both ends of the peeling 2mm can be applied.
