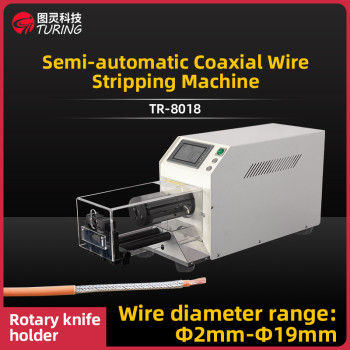

TR-8018 Semi-auto Coaxial Cable Stripping Machine
- group name
- Semi-automatic Coaxial Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-8018
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 17:29:58 GMT
Paramtents
Power AC220V/50HZ,
Function Cable Stripping Machine
Cable diameter 2-19mm
Packging & Delivery
-
Min Order1 piece
Briefing
TR-8018 Semi-auto Coaxial Cable Stripping Machine
Detailed
TR-8018 Semi-auto Coaxial Cable Stripping Machine
Supply Voltage:AC220V/50Hz
Display Mode:LCD touch screen
Size&weight:720x230x350mm,50kg
Wire Diameter Range:Φ2mm-Φ19mm
Strip length:0.1-100mm
Depth of cut unit:0.01mm
Max. number of
peeling layers:9 layers
working environment:-5~45℃ dry and vibration-free work surface
drive method:Motor/Taiwan TBI ball screw drive
Rotary Cutting Blades:4 pieces imported tungsten steel
Centring blades:4 pieces of imported high-speed steel
activation method:Manual/foot pedal (optional)
Storage function:99 process parameters
Applicable wires:Coaxial cable line, new energy cable
Characteristics
Coaxial cable computer stripping machine is a high-precision coaxial cable strippingequipment, it uses intelligent digital photoelectric technology, japan NSK ball bearings,Taiwan TBl ball screw drive.Domestic only one to the motion control system manufacturers, the system is morestable, the operation is more intelligent, the two ends of the stripping lenath of the lineis free to switch (can be one end of a long head short), now on the market can only beone end of a batch of stripping, and then switch to the other end, the efficiency is veryslow.Simple to set each function, can save 99 kinds of plus data, button / foot pedal twokinds of start-up mode, can set up to nine layers of peeling, function speed adjustable.
The equipment is suitable for communication industry all kinds offlexible and semi-flexible with the main line,medical wire, automotive wire, charging wire, etc. peelingpeeling buckle neat, precise, not hurt the conductor.
