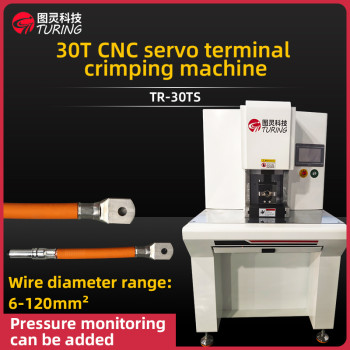

TR-30TS 30T CNC servo terminal crimping machine
- group name
- New Energy Servo Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-30TS
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sun, 24 Nov 2024 14:01:49 GMT
Paramtents
Power AC220V/50HZ,
Application Intelligent Servo Terminal Crimping Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-30TS 30T CNC servo terminal crimping machine
Lily +8613715588365
Lily +8613715588365
Detailed
TR-30TS 30T CNC servo terminal crimping machine
Power source:AC220V 50Hz , 2300W
Size&weight:146x57x71cm,318kg
Pressure capability:30TS
Stroke:0-50mm
Crimping accuracy:±0.03mm
Swipe to identify:support
Display Mode:HD touch screen display
Diameter range:6-120mm² (depending on terminal wire)
Pressure Monitor:Base plate pressure monitoring (wall pressure monitoring optional)
function:Terminal crimping, pressure testing, code scanning identification
specificities:Simple operation, high crimping accuracy, low maintenance costs,
support for pressure manipulation force monitoring (optional),
code recognition (optional), man-machine effectiveness and mutual
friendliness.
Functional features
HMI interface operation, friendly interaction;
Pressure monitoring (optional), automatic shutdown for bad crimping;
Mould quick change (optional), standard base, convenient and quick;
5µm electronic ruler accurate crimping, to ensure crimping accuracy;
High crimping precision, new generation servo motor, high precision, low noise;
Simple maintenance, optimised design, modular function, make the maintenance more simple and clear;
Products
The equipment is a new type of automatic CNC servo crimping equipment, beautifulappearance, the use of advanced servo motors, motion control cards and touch screencontrol system composed of intuitive understanding and set the working parameters ofthe full digital processing, optional pressure sensors, real-time observation of the statusof the terminals, to a greater extent to ensure that the yield of the product. At the sametime with authority hierarchy management, optional code recognition and otherfunctions to greatly improve the efficiency of the factory.
Functional features
HMl interface operation, friendlyinteraction;Pressure monitoring (optional),automatic shutdown for bad crimping;Mould quick change (optional), standard base, convenient and quick;5um electronic ruler accurate crimping, to ensure crimping accuracy;High crimping precision, new generation servo motor, high precision, low noise;Simple maintenance, optimised design, modular function, make the maintenance moresimple and clear;
SERVO MOTOR DRIVE
Overcome the traditional motor out-of-step problems,to achieve high-precision operation, with a fast response Simple manipulation,low noise, low energy consumption and so on.
INDUSTRIAL COMPUTEROPERATION
Touch screen operation, control system integration,data traceability Industry 4.0, can be docked with thefactory MODBUS system three levels of authority settings,more reliable parameter settings, can store 120 kinds ofprocessing parameters program, convenient debugging
