TR-LY02 semi-automatic bulk cold-pressed terminal stripping and crimping machine

group name: Semi-automatic Bulk Terminal Crimping Machine

Min Order: 1 piece

brand name: Turing

model: TR-LY02

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Thu, 21 Nov 2024 17:27:44 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
Application Stripping wire and terminal crimping machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365

Packging & Delivery

Min Order1 piece

Briefing

TR-LY02 semi-automatic bulk cold-pressed terminal stripping and crimping machine

Detailed

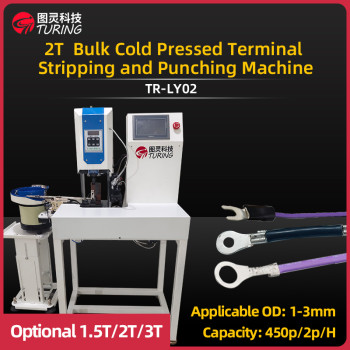

TR-LY02 2T Bulk Cold Pressed Terminal Stripping & Punching Machine

power supply：AC 200V 50/60Hz

production capacities：450p/2p/H

Processing wire：Single branch cable, multi-core cable, row cable

Applicable terminals：Electronic wire terminals

Main Configurations：Closed-loop stepper + touch screen

pressure capability：1.5T

Applicable outer diameter：1-3mm

Stripping range：1-10mm

Cutting accuracy：0.1mm

compressed air：5.5kg pure gas source

size & weight：1500x1400x850mm，240kg

note：Optional 1.5T/2T/3T

Product Features

1. PLC programme control, vibrating plate automatic sorting feeding, and sent to theriveting position, manual threading, step on the foot pedal, the equipment automaticallyriveted assembly of three pins reed.

2. Touch screen setting, easy to operate, simple maintenance, lack of material or faultautomatic alarm shutdown.

3.Processing speed: 800-1200pcs/H.

4. Detection mode: fibre optic amplifier, proximity magnetic switch automatic inductiondetection.

5.Working mode: automatic/manual/single station cycle.
