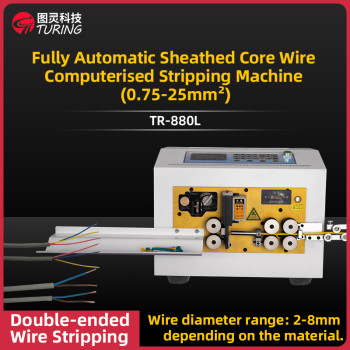

TR-880L Fully Automatic Sheathed Core Wire Computerised Stripping Machine(0.75-25mm2)

group name: Computer Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR-880L

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Thu, 21 Nov 2024 17:51:30 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785

Packging & Delivery

Min Order1 piece

Briefing

TR-880L Fully Automatic Sheathed Core Wire Computerised Stripping Machine(0.75-25mm2)
Coco 0086-18666170785

Detailed

TR-880L Fully Automatic Sheathed Core Wire Computerised Stripping Machine(0.75-25mm²)

Supply Voltage：AC220V/110V 50/60Hz

Pneumatic：0.4-0.6Mpa

Size &weight：450x430x380mm，48kg

Display Mode：English and Chinese colour touch screen

Core wire processing：Inner core wire 1-4 pcs

Length accuracy：±(0.2+0.002L)

Wire Type：Multi-core round sheathed wire, flat sheathed wire

Core wire stripping length：Wire head 1-20mm, wire tail 1-20mm, depending on the wire material

Processing Diameter：2-8mm, depending on the wire

Cutting length：10-9999mm

Outer skin peeling length：Wire head: front 150mm; wire tail: rear end 80mm

Wire feeding method：Inlet pulleys can be fed by belts and rollers, outlet pulleys are only fed by rollers (rubber and iron pulleys)

Feature Description

1. This machine is mainly for round sheath cable, flat sheath cable peeling core wireprocessing, can achieve automatic cut off the tail, peeling the outer skin, peeling theinner core skin function.

2. Adopting belt and roller to feed the wire, large contact area, high precision, noobvious indentation on the surface.

3. Adopting precision stepping motor and control product, subdividing way to con-trol the length, small error.

4. Display mode: colour touch screen interface, Chinese and English can beswitched.

5. Operation mode: automation can be achieved by setting the total length of theline, cut off, peeling the outer skin, peeling the core line, a one-time operation iscompleted, automatically record the output, easy to operate, thus greatly improvingefficiency.

6. The machine is powerful, reserved for a number of ports, for supporting someauxiliary equipment for input and output devices.

7. The standard equipment does not include the release and take-up, according tocustomer demand, can be added to the release machine and automatic push linemachine,robotic take-up machine.
