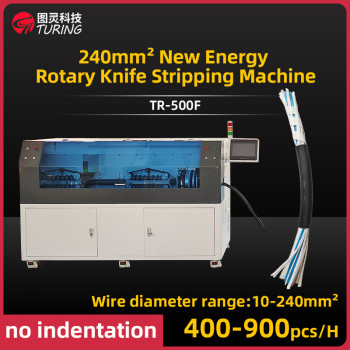

TR-500F 240mm² New Energy Cable Rotary Knife Stripping Machine (240 square mm cable)

group name: Computer Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR-500F

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Thu, 21 Nov 2024 20:30:51 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365

Packging & Delivery

Min Order1 piece

Briefing

TR-500F 240mm² New Energy Cable Rotary Knife Stripping Machine (240 square mm cable)
Lily +8613715588365

Detailed

TR-500F 240mm² New Energy Cable Rotary Knife Stripping Machine (240 square mm cable)

Supply Voltage：220V/50Hz

power：1.5kW

Wire diameter type：Various wires and cables and coaxial cable lines

Storage procedures：99 types of cable processing data

Stripping range：10-240mm²

Cutting length：50-99999.99mm

Blade Material：Imported high-speed steel

peeling layer：9 layers

Catheter Diameter：10-50mm

Strip length：Front stripping 650mm; back stripping 350mm

capacity：400-900 strips/hour (depending on wire length and size)

Size & weights：1550x700x1080mm，1000kg

Driving method：8-wheel independent servo drive (12 each for auxiliary wheel feed and emergence)

Pressure Wheel Setting：Motor-driven, digitally controlled pressing force

Machine description

1.This machine is a new cable plus equipment with microcomputer control, rotaryknife stripping method, mainly for new energy motors, charging stations, electroniccontrol, BMC used in the processing of high-voltage power lines, the introduction ofthis model completely solved the problem of processing large-square line;

2. Automatic wire cutting, stripping both ends of the insulation skin, at the same timecan be multi-layer stripping processing;.

3. industrial-grade control chip with high-precision servo drive, so that the machinecan be stable and high-speed operation;

4.PLC controlsystem,touch screen operation mode.

5. Automatic adjustment of wire diameter, no need to change the tool for differentcable sizes;and

6.Adopt belt drive,noindentation;

7. lt can easily process cables within 10-240 square mm, and the strong power is theguarantee to improve the working efficiency.

8. This machine with the rotary knife function, to ensure the processing of newenergy high-voltage wire, shielded wire cutting and stripping once completed
