TR-400F new energy rotary knife computer wire stripping machine (150 square mm)
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-400F
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Fri, 22 Nov 2024 01:32:55 GMT
Paramtents
Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-400F new energy rotary knife computer wire stripping machine (150 square mm)
Lily +8613715588365
Lily +8613715588365
Detailed

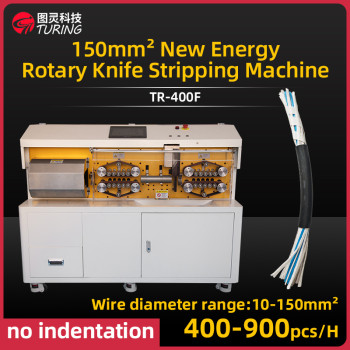

TR-400F new energy rotary knife computer wire stripping machine (150 square mm)
Supply Voltage：220V/50Hz
power：1kW
Wire Type：Various wires and cables and coaxial cable lines
Storage procedures：99 types of cable processing data
Cutting length：50-99999.99mm
peeling layer：9 layers
Blade Material：Imported high speed steel
Stripping range：10-150mm²
Catheter Diameter：10-45mm (can be customised larger)
Strip length：Front stripping 450mm; rear stripping 220mm
Production capacity ：400-900 pcs/H (depending on wire length and size)
Size & weight：1550x700x1080mm(without footrest)，780kg
Driving method：Multi-wheel independent servo drive (12 each for auxiliary
wheel feed and emergence)
Machine description
1.This machine is a new type of cable plus equipment with microcomputer controlmainly for new energy motors, charging stations, electronic control, BMc withhigh-voltage power line processing, the introduction of this model completely solvedthé processing problems of large square lines.
2. Automatically cut the wire, strip the insulation skin at both ends, and at the sametime can carry óut multi-layer stripping processing.
3. industrial-grade control chip with high-precision servo drive, making the machinecan be stable and high-speed operation.
4.PLC control system, touch screen operation.
5. Automatic adjustment of wire diameter, no need to change the tool for differentcable sizes;
6. Adopting belt drive, no indentation.
7. it can easily process cables up to 150 square metres, strong power is the guaranteeof improving working efficiency;
8. The machine with rotary knife function, to ensure the processing of new energyhigh-voltage wire, shielded wire cutting and stripping at once.
