TR-HY01 Automatic 5-in-1 Terminal Riveting Press Machine(Terminalising and sleeving)

group name: Semi-auto Copper Strip Crimping Machine

Min Order: 1 piece

brand name: Turing

model: TR-HY01

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Thu, 21 Nov 2024 22:47:02 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
Name Copper Tape Crimping Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365

Packging & Delivery

Min Order1 piece

Briefing

TR-HY01 Automatic 5-in-1 Terminal Riveting Press Machine(Terminalising and sleeving)
Lily +8613715588365

Detailed

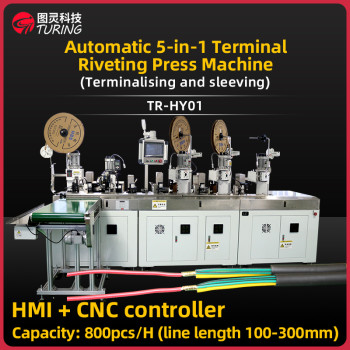

TR-HY01 Automatic 5-in-1 Terminal Crimping Riveting Press Machine(Terminalising and sleeving)

size & weight：3630x2000x2000mm，4000kg

capacity：Approx. 800pcs/H (wire length 100-300mm)

Characteristics

1. The equipment is stable and reliable continuous production, generous and beautifulmodelling,easy to operate and debug;

2. The quality of finished products can reach the sample requirements,

3. Equipment production beat: single wire end riveted wire terminals, wire length100-300mm as an example; the number of products produced 800PCS / H or so.

4. Operator: one person is mainly used for uploading and monitoring the operation,machine operation working height of about 1000mm;

5. All parts are blackened, chrome plated and anodised. The frame and sheet metalare made of cold rolled plate baking paint and stainless steel 304, and the mechanicalparts are equipped with safety guards;

6.Adopt human-machine interface and CNC controller.

7. There are wire shortage alarm, wire knotting alarm, casing shortage alarm, all ter-minals riveted abnormal alarm.

Equipment working principle and procedure

1.Stage feeding by manpower;

2. The wire is fed automatically by the wire feeding mechanism;

3. The programme can be adjusted to feed the length of the wire, peeling length pa-rameters;

4. The front and rear ends of the wire are stripped, and then the front end of the wire isterminated;

5. Four groups of wires are combined into one group of wires, twisted wires;

6.Casing automatic loading, fixed length cut off;

7. The fifth wire before stripping, wearing casing and another four wires riveted by theterminal;

8. The end of the wire to hit the terminal.
