TR-K9S 2T High Precision Servo Copper Strip Machine

group name: Semi-auto Copper Strip Crimping Machine

Min Order: 1 piece

brand name: Turing

model: TR-K9S

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Thu, 21 Nov 2024 22:58:16 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
Name Copper Tape Crimping Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365

Packging & Delivery

Min Order1 piece

Briefing

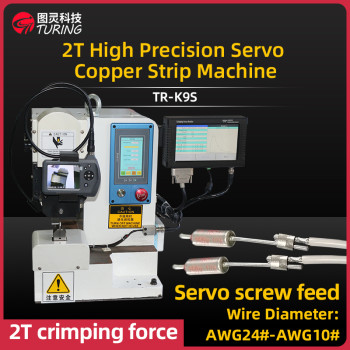

TR-K9S 2T High Precision Servo Copper Strip Machine
Lily +8613715588365

Detailed

TR-K9S 2T High Precision Servo Copper Strip Machine

Size & weight:340x360x450mm,65kg

Splice time:1s(can adjust )

Splice force:2.0T(can adjust )

Stop splice machine:Can adjust

Wire diameter:AWG24#-AWG10#

Motor rating:0.75KW Sevo motor

Power supply:AC220V/50HZ

Feeding length :1-99.9mm

Cooper width:1-6mm

splice precision:0.1-0.2(±0.05m)

Crimp Pull Power:1-15KG以内

Driving way:Servo motor,stepping feeding

Description of features

-Professional connector crimping equipment, specially designed for processinghigh-end,precision wires.

-Crimping method to connect wires, instead of the traditional soldering methodwithout the shortcomings of cold soldering, air soldering and air pollution.It is the easiest and most effective way to pass all kinds of safety specification

tests(UL,JiS).

-Automatic delivery of continuous copper tape terminals, the material is auto-matically cut off, shaped, crimped, one-time completion of the automatic feedingfixture is customised according to the product and the distance, wire and connec.tor in the fixture mould is automatically sent to the crimp knife die, crimp the twoproducts in turn, doubling the speed, and no waste material, cost savings.

-According to the wire size and copper tape specifications of the custom die, dif-ferent wire configuration of different die.

-f the wire size is the same, but the copper tape size changes, you need to con-figure another die.

-Copper tape terminals are processed by special texture, strong tensile strengthand stable quality after riveting.

-Copper tape is fed by servo screw module, the feeding stability of copper tape isstrong.
