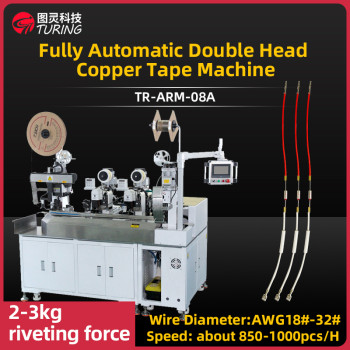

TR-ARM-08A Fully Automatic Double Head Copper Tape Machine (Wire crimped to thermal cut-off resistor and terminated and sleeved at both ends)

This equipment can automatically feed the material, automatically feed the wire, cutthe wire, strip the wire, resistor riveting and pressure connection, riveting and pres-sure connection detection, the two ends ofthe terminal, the middle of the casing, toachieve continuous, efficient, high-quality automated production of the product.

1. The equipment is stable and reliable continuous production, generous and beauti-ful modelling,easy to operate and debug;

2. The quality of finished products can reach the sample requirements;

3. The production beat of the equipment: take the resistor riveted and pressed atboth ends to connect the wires, and hit the terminals at both ends, the wire length is80-300mm,for example, it is about 850-1000 strips per hour/hour;

4. All parts are blackened, chrome-plated and anodised. The frame and sheet metalare made of cold rolled plate with baking paint and stainless steel 304, and the me-chanical parts are equipped with safety guards;

5. Adopting human-machine interface and PC controller, with alarm function for wireshortage,rewinding and other abnormal stoppage.
