TR-ARM-09A Fully Automatic Double Head Copper Tape Machine
- group name
- Fully Automatic Copper Tape Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-ARM-09A
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sun, 24 Nov 2024 10:52:52 GMT
Paramtents
Power AC220V/50HZ,
Name Copper Tape Crimping Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing

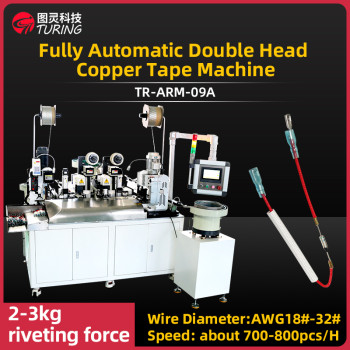

TR-ARM-09A Fully Automatic Double Head Copper Tape Machine
Lily +8613715588365
Lily +8613715588365
Detailed
TR-ARM-09A Fully Automatic Double Head Copper Tape Machine
Machine functions:Automatic Wire Cutting + Stripping + Terminal Punching + Crimping
Terminals + Bulk Resistor Automatic Feeding + Resistor
Forming + Riveting Resistor (U-Terminal/Copper Strip) + Sleeving
Wire Diameter:AWG18#-32#
riveting force:2.0-3.0KG
Wire processing length:45mm or more on one side (special lengths, if any, can be customised)
processing speed:4.5s/pcs,700-800pcs/H (L=60-300mm)
Applicable width/thickness of copper strip:Width: 2-8mm; Thickness: 0.3-0.5mm
Product pullout force:2-20kg (assessed on crimp product)
Resistance cut-off length:Adjust the length according to the product
Size & Machine weight:1800x1100x1650mm,About 800-1000KG
Driver Configuration:Servo Motors / Asynchronous Motors
Motor power:0.75-1.5kW.
Description of features
This equipment can automatic feeding, automatic wire feeding, wire cutting, strippingterminal riveting, copper strip riveting, wearing sheath tube, wearing heat-shrinkablesleeve, heat-shrinkable function, to achieve continuous, efficient, high-quality auto-mated production of products.
1. The equipment is stable and reliable continuous production, the shape is generousand beautiful, easy to operate and debug;
2. The quality of finished products can meet the sample requirements;
3. Equipment production beat: single wire end riveted wire terminals, wire length60-300mm for example; product production cycle of
4.5S/PCS, capacity700-800PCS/H4. All parts are blackened, chrome plated and anodised. The frame and sheet metalare made of cold rolled plate and stainless steel 304, and the mechanical parts areequipped with safety guards;
5. Adopting human-machine interface and CNC controller, with wire, casing and ther.mal device lack of material, rewinding and other abnormal stopping alarm function.
