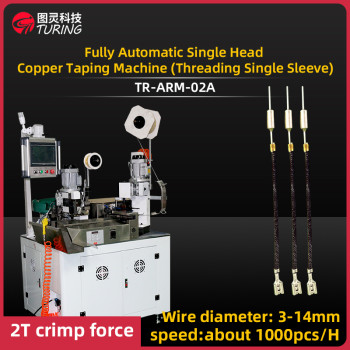

TR-ARM-02A Fully Automatic Single Head Copper Taping Machine (Threading single sleeve)

group name: Fully Automatic Copper Tape Machine

Min Order: 1 piece

brand name: Turing

model: TR-ARM-02A

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Sat, 23 Nov 2024 19:01:21 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
Name Copper Tape Crimping Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365

Packging & Delivery

Min Order1 piece

Briefing

TR-ARM-02A Fully Automatic Single Head Copper Taping Machine (Threading single sleeve)
Lily +8613715588365

Detailed

TR-ARM-02A Fully Automatic Single Head Copper Taping Machine (Threading single sleeve)

Function：Automatic wire feeding, wire cutting, stripping, termination, resistance automatic conveying and cutting, copper tape crimping as a whole.

Dispaly：Color LCD touch screen

Air pressure：0.5Mpa-0.65Mpa

Operation mode：Automatic operation and manual opretion

power supply：AC220V/50Hz

Cutting Length：100-999mm

Tube length：15-50mm

Stripping Length：3-14mm

Wire diameter：3-14mm (customizable)

Size & Weight：1000x1350x1500mm，300KG

Speed：about 1000PCS/H

Power：2.5kW

Splice Force：2T

Driving way：High precision stepper motor、SMC、Advantech Pneumatic components、self-developed、programmable numerical control system.

Fully Automatic Single Head Copper Taping Machine (Threading single sleeve) TR-ARM-02A

Description of features

1、This machine is suitable for resistor and wire crimping, wearing casing, horizontalcomponents and wire connection.

2、it integrates wire feeding, cutting, stripping, crimping, sleeving and automatic in-spection to realize automatic production.

3、Adopting servo control and stepping feeding control, according to the product re-quirements to set: wire cutting length, stripping length, resistor cutting length, resistorshaping cutting length and copper tape crimping size.

4, according to different product requirements to set the function on and off, the fourfunctions: playing end function, resistance processing function, heat shrinkable sleevefunction, crimping copper tape function.

5, wire cutting parameters set, respectively, to set the length of the wire, wire length,wire length, tail length, for different sizes of wire set the knife value, to meet the re-quirements of half-stripping, full-stripping, you can set the number of production, thenumber of single handle.

6, full automation to complete the production, improve work efficiency and productquality, but also save labor costs.
