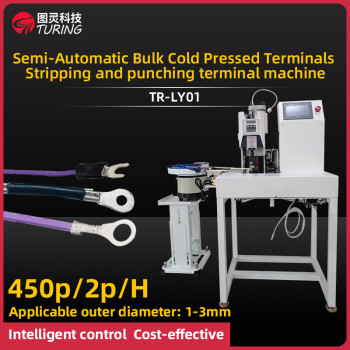

TR-LY01 semi-automatic bulk cold-pressed terminal stripping and crimping machine
- group name
- Semi-automatic Bulk Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-LY01
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 16:58:35 GMT
Paramtents
Power AC220V/50HZ,
Application Stripping wire and terminal crimping machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-LY01 semi-automatic bulk cold-pressed terminal stripping and crimping machine
Detailed
TR-LY01 semi-automatic bulk cold-pressed terminal stripping and crimping machine
Operation mode: manual operation, single-week operation
Peeling length 1～20mm
Wire specifications AWG#18-AWG#24
Terminal machine output 1.5T (European-style ultra-quiet audio frequency terminal machine, other press models can be customized)
Air pressure: 6.0 kg/cm2 or above (requires stable, clean, dry air)
Power requirements: 500W AC 220V, 50Hz
Overall machine weight approximately 100 kg
Overall dimensions: 700(L)×500(W)×1700(H) mm
Product Features
1. PLC programme control, vibrating plate automatic sorting feeding, and sent to theriveting position, manual threading, step on the foot pedal, the equipment automaticallyriveted assembly of three pins reed.
2. Touch screen setting, easy to operate, simple maintenance, lack of material or faultautomatic alarm shutdown.
3.Processing speed: 800-1200pcs/H.
4. Detection mode: fibre optic amplifier, proximity magnetic switch automatic inductiondetection.
5.Working mode: automatic/manual/single station cycle.
