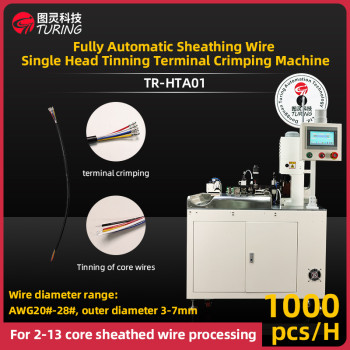

TR-HTA01 automatic sheathed wire single-head tin dipping terminal crimping machine

group name: Fully Automatic Sheathed Wire Terminal Crimping Machine

Min Order: 1 piece

brand name: Turing

model: TR-HTA01

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Sat, 23 Nov 2024 18:10:07 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
Application terminal crimping machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365

Packging & Delivery

Min Order1 piece

Briefing

TR-HTA01 automatic sheathed wire single-head tin dipping terminal machine

Detailed

Product Features

1.This equipmentis mainly used in the processing of 2-13core sheathed wires for home appliances, equipment,automobiles,electricalcabinets,aerospace,etc. Theefficiency of 13 core is up to 700 pcs/h.

2.The shortest stripping can be up to 18 mm(4 core), thelongest stripping 120 mm.The shortest stripping can be up to 18 mm(4-core), thelongest stripping 120 mm.

3.Servo motor with screw drive, high precision motionsystem.

4.Standardly equipped with CFM pressure device toprotect the blade and strictly control the quality.

5.independent wire splitting device, no need for specialmoulds.

6.Pressure-adjustable wire splitting clamp, protect theinner skin without damage.

7.Self-developed design,software and hardwareintegration,support system maintenance and upgrading

8.Equipment can be equipped with safety guard, wirefeeding and receiving belt, MES system and othercomponents.

TR-HTA01 automatic sheathed wire single-head tin dipping terminal crimping machine

Function:2-13 cores cut to length,single/double end strippingdouble end core wire cuttingsingle/double end stripping)

single end crimping, tinning (twisting)

Machine speeds:1000pcs/H

Options

1. Tinning module structure

2.Pre-feeding device

3.Servo motor crimping

4.Inverter motor crimping

5.afety guards

6.Take-up line conveyor

7.MES production management system

8.Pressure management monitoring device
