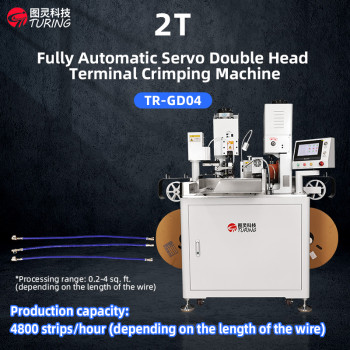

TR-GD04 double-head domestic servo motor terminal crimping machine
- group name
- Fully Automatic Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-GD04
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Wed, 04 Dec 2024 02:49:54 GMT
Paramtents
Power AC220V/50HZ,
Application terminal crimping machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-GD04 double-head domestic servo motor terminal crimping machine
Detailed
TR-GD04 double-head domestic servo motor terminal crimping machine
Machine functions:
wire cutting, double-end stripping, single-end half-stripping, single-end single-end crimping, single-wire double-end crimping.
Cutting line length 26mm~9999mm
Cutting tolerance ≥1m, ±0.02% or less
Appearance dimensions: length 1380*width 750*1580 height (mm)
Machine weight 360Kg
Working voltage AC220V 50Hz
Working air pressure 0.5~0.6MPa (stable, clean, dry)
Rated power 1.8KW
Peeling length 0.5mm~35mm (over 12mm, half peeling is required)
Cutting speed 5500 lines/h (within 100mm)
Processing efficiency 4000~4800/h (within 30~200mm)
End pressure: standard 2.0T, other pressures can be customized
Applicable wire AWG30#~14#
Applicable molds: OTP transverse mold, straight mold (European mold can be customized)
Motor: 5 sets of Japanese Mitsubishi servo motors + 2 sets of stepper motors
Screw: 4 sets of TBI screws
Slide rail 7 sets of silver guide rails
Bearings Sweden SKF
Terminal crimping capacity 2T/3T European precision frequency conversion terminal machine
