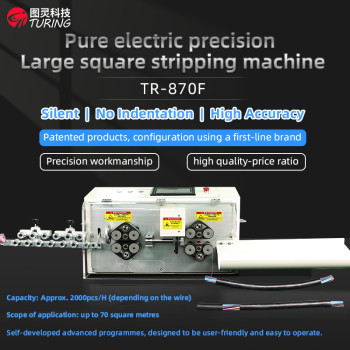

TR-870F Pure Electric Precision 70 Square Cable Stripping Machine

Operating page：7-inch touch screen display

Cutting tolerances：± (0.002mmL) (L indicates cutting length)

Size &weight：L710mm*W569mm*H445mm，90kg

Stripping length：Front 0-500mm Rear 0-300mm

Conduit control method：motor

Number of motors：9

Cutting line length：0.1-99999.9mm

Scope of application：Up to 70 sq. ft.

Conduits：8/12/16/18

Drive method：16-wheel drive pulley feed line

Capacity：Approx. 2000pcs/H (depending on the wire)

7-inch HD touch screen

Select the domestic first-line brand Kunlun Tongshi colour touch-screen operator inter-face,the machine comes standard withChinese and English,the parameters are intuitive and easy to understand, only simple training can quickly operate the ma-chine.The machine also has three layers of stripping procedures, can be divided into multiple stripping,or stripping length is longer is up to several times stripping.

Belt type with screw forwards and backwards bud feeding

Adopting 12 wheels drive, strong power, bilateral pressure wheels toensure the same centre point of largeand small wires; 8 sets of motors tocontrol the conduit, knife holder,in-let/outlet wheels with strong power more stable.No indentation marks onthe outer skin of the wire.

High speed Steel Blades

The knife frame is made of heat treat-ment and grinding process closed-loop motor acceleration and deceleration,the motor control is more precise than the traditional gear con-trol and the electric catheter feeds thewire more accurately.
