TR-840C Fully Automatic High-speed Precision 4-wire Stripping Machine
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-840C
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Wed, 04 Dec 2024 00:42:40 GMT
Paramtents
Power AC220V/50HZ,
Name Wire Stripping Machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
-
Min Order1 piece
Briefing

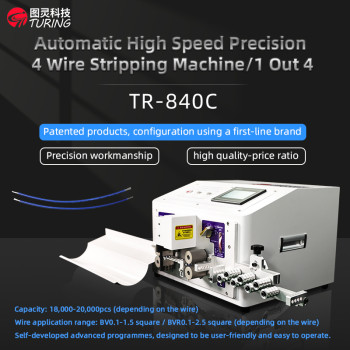

TR-840C Fully Automatic High-speed Precision 4-wire Stripping Machine
Coco 0086-18666170785
Coco 0086-18666170785
Detailed
TR-840C Fully Automatic High-speed Precision 4-wire Stripping Machine
Power supply：220V～50-60Hz
Operating page：5-inch touch screen display
Size &weight：L460mm*W480mm*H330mm，30kg
Cutting line length：0.1-99999.9mm
Strip length：Front 0-30mm Rear 0-30mm
Scope of application
of the wire：BV0.1-1.5 sq.ft./BVR0.1-2.5 sq.ft. (depending on the wire material)
Conduits：3/4
Conduit control
method：motor
Number of motors：4 (controls: inlet/outlet sheaves, tool holders, conduits, respectively)
Number of wheels：8 (4 each rubber/iron wheels)
Drive method：4-drive, 4-wheel
Capacity：18,000-20,000 (depending on the wire)
5-inch HDtouch screen
Selection of the domestic first-linebrand Kunlun Tongshi colourtouch-screen operatorinterface,themachine comes standard with Chineseand English,the parameters are intui-tive and easy to understand, moreconvenient peeling, cutting off theeffect is better.
Heat TreatmentGrinding Tool Holder
The knife holder adopts heat treat-ment and grinding process, durablecutting and stripping wire more accu-rately.
Wire Straightener
One-touch switch quick switch, allcopper wire feed wheel screws, magnetic ring feed to prevent damage noindentation wire is straighter and moreaccurate.lmprove work quality andefficiency.
Blade unit
Adopt electricjumping conduit, feedthe line more accurately.The bladefixing device is more convenient tochange the blade, and it can be tight-ened when replacing the blade, elimi-nating the need to adjustthe positionof the blade every time it is changed.Wire protection device, to avoid thewire to the outside of the deflection.
