TR-QG02 Semi-auto Desktop high-speed pipe cutting machine
- group name
- Pipe/Tube Cutting Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-QG02
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sun, 24 Nov 2024 13:43:53 GMT
Paramtents
Power AC220V/50HZ,
Application Automatic Tube Cutting Machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
-
Min Order1 piece
Briefing

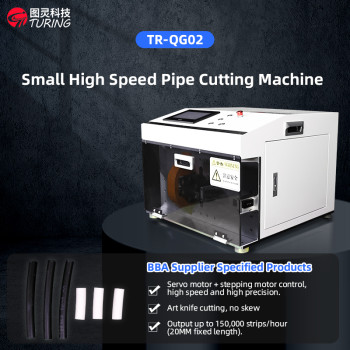

TR-QG02 Semi-auto Desktop high-speed pipe cutting machine
Detailed
TR-QG02 Semi-auto Desktop high-speed pipe cutting machine
Input Voltage：220V-AC
frequency：50/60Hz
power：1100W
monitor：7-inch colour TFT
Equipment Traction Efficiency：30-40 metres/minute
operating method：proactive
System control
method：PLC/Touch Screen
Equipment Tubing Compatibility Range：Outside diameter Φ1.0/Φ12 (optional mould cover)
Cutting material：PVC,PE,TPE,PU,Teflon Heat Shrink Tubing and other soft materials
Pipe wall thickness
requirements：0.2 mm or more
operating temperature：0℃-50℃
Storage temperature：-20℃-60℃
Operating humidity：10%RH~90%RH (no condensation)
anti-interference capability：Interference voltage:1500Vp-p Pulse period:1us Duration:1min.
air：Non-corrosive air
Cooling method：Forced air cooling
Tube Cutting Length：5mm-99999mm (free setting)
size：600x600x740mm
weight：72kg
BBA Supplier Specified Products
Servo motor + stepping motor control
high speed and high precision.
Output up to 150,000 strips/hour(20MM fixed length).
Art knife cutting, no skew
Equipment features
1. The whole series of standard servo motorand stepping motor, electronic camclosed-loop controltechnology to achieve
high-speed, high-precision cutting,productconsistency is good, the tolerance rangecan be controlled at about +1MM.
2. According to the customer's demand, wecan set the output alarm prompts to realisethe operation ofone person and many
machines, which greatly saves the cost ofmanpower.
3. The cutting tool adopts the common artknife blade on the market, with fastreplacement speed and small hard wareloss,which is simpler and more practicalthan the traditional tool.
Product Description
1.Industrial automation PLC, human-machine interface control, simple operation, stablework,high efficiency.
2. Adopt full digital control, can be processed data for multi-unit storage, as well as fastswitching
3.20MM fixed length can cut three pipes at the same time, the output can be up to150,000/hour.
4. Large compatibility of the equipment, through the replacement of the die set canachieve multiple simultaneous cutting.
