TR-GD02 single head tin dipping terminal crimping machine
- group name
- Dipping Tin Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-GD02
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 23:39:13 GMT
Paramtents
Power AC220V/50HZ,
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Function Threading and Baking Heat Shrinkable Tube Machine
Packging & Delivery
-
Min Order1 piece
Briefing

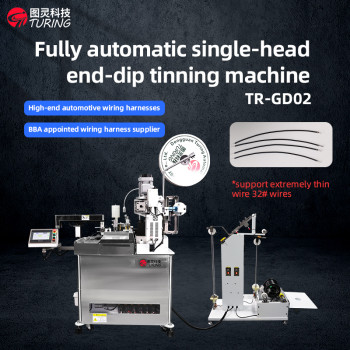

TR-GD02 single head tin dipping terminal crimping machine
Detailed
TR-GD02 single head tin dipping terminal crimping machine
Power source：3-phase 220V ±10% or less (50/60HZ)
Air source：0.5Mpa 150(ANR)/min
Speed：3600 pcs/hour (single-ended, tinned) (when L=100mm)
Working capacity：AWG32～AWG14# (12# or more optional)
Cutting length：30 to 9999mm (1mm unit setting)
Cutting accuracy：（0.2+0.00005×L）mm
Strip length：Adhesion - F-side: 0 to 10mm,
Solder - R-side: 0 to 15 (Setting 0.1mm unit)
Solder length：Solder-R side: 2～15mm
Crimp capacity：Pressing - F-side: 2T (3T optional)
Control method：Frequency inverter drive, AC motor
Solder volume：Solder coil φ1.0～1.6mm
Solder setting
temperature：20～400℃
Size&Weight：L1100mm*W920mm*H1600mm，450KG
Adaptive line species：AV，AVS，AVSS，CAVUS，KVKIV，UL
Size of
wire laying frame：L930*W500*H1260 mm
Mitsubishi servo motor drive
Speed up to 3600 pcs/hour
support extremely thin wire 32# wires
With Japanese cable pressuredetection device
Precision full-automatic single-head end-dip tinning machine, using Mitsubishi servothe whole machine 6 servo motors) and ball screw drive,
so that the position of wirefeeding, stripping, end-dip, tinning, etc. is very accurate, the connection between eachother's movements is smooth, the speed can be up to 3,600 articles / hour;
Mechanical controlis simple and convenient, all operated by touch screen, dataadjustment can change the length of stripping and cutting line, cutting line depth, endposition, tinning time, etc., saving time for the adjusting personnel; the machine'sautomatic detection function can also effectively control the occurrence of defectiveproducts, so that it can be found and dealt with instantly;
lt is a processing machine that brings you safety, high efficiency and precision. (Can becustomised according to requirements)
