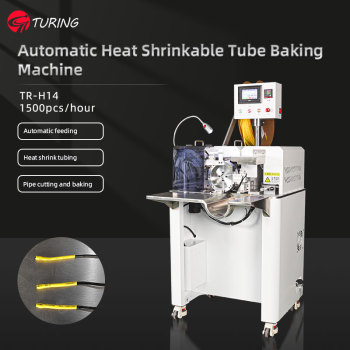

TR-H14 Semi-automatic Heat Shrink Tube Baking Machine
- group name
- Inserting Tube Machine and Heat Shrink Tube Baking Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-H14
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 17:02:11 GMT
Paramtents
Power AC220V/50HZ,
Application Semi-automatic Heat Shrink Tube Baking Machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR-H14 Semi-automatic Heat Shrink Tube Baking Machine
Detailed
TR-H14 Semi-automatic Heat Shrink Tube Baking Machine
Applicable wires：Electronic wire, silicone wire, multi-core wire, multi-core over-powdered wire, isolation wire, etc.
Size & weight：L500 x W640 x H1300mm，Approx. 78KG
power supply：1350W AC220V50/60HZ
capacities：1500pcs/hour (depending on the wire)
Casing Compatibility Range：1.0φ/6.5φ standard (7.0 or more customized)
Casing baking length：4mm-50mm (optional jig)
Baking temperature：200°C-380°C (adjustable by thermostat)
Pneumatic：5.5/6.5KPa
Temperature：0℃-50℃
Humidity level：10%RH~90%RH (no condensation)
Anti-interference capability：Interference voltage: 1500Vp-p Pulse period: 1us Duration: 1 minute
Casingbaking length:4MM-50MM(optional)
Baking temperature:200°C-380°C(adjustable by thermostat)
Pneumatic:5.5/6.5KPa
Temperature:0℃-50℃
Weights:Approx.78KG
Humidity level:10%RH~90%RH(no condensation)
Anti-interference capability:Interference voltage: 1500Vp-p Pulse period: 1us Duration: 1 minute
utomatic wire Wear tube heat shrink machine, insert tube heat insulator wire threading, View wire connection machine
This machine only wears the tube without forming, the customer provides wire samples, and the customized machine according to the samples provided.
Manual pay off, automatic pipe cutting, automatic pipe threading, automatic banking, one-time completion.
Fast positioning speed and precision through the pipe.
The large screen and buttons are clear at a glance, making the operation more convenient.
After the set baking time, the heating tube will automatically return to its original position, and the finished wire can be taken out by opening the guide clip.
