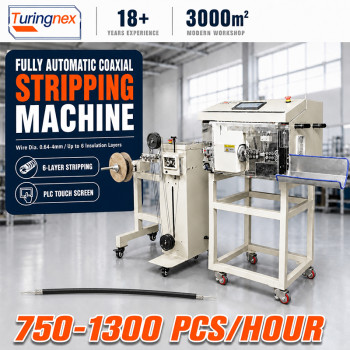

TR-9800 Fully Automatic Coaxial Wire Stripping Machine
- group name
- Fully Automatic Coaxial Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-9800
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Wed, 26 Aug 2026 10:02:41 GMT
Paramtents
Power AC220V/50HZ,
Name Semi-automatic Coaxial Wire Stripping Machine
Contact Lily 008613715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-9800 fully automatic coaxial wire stripping machine
Detailed

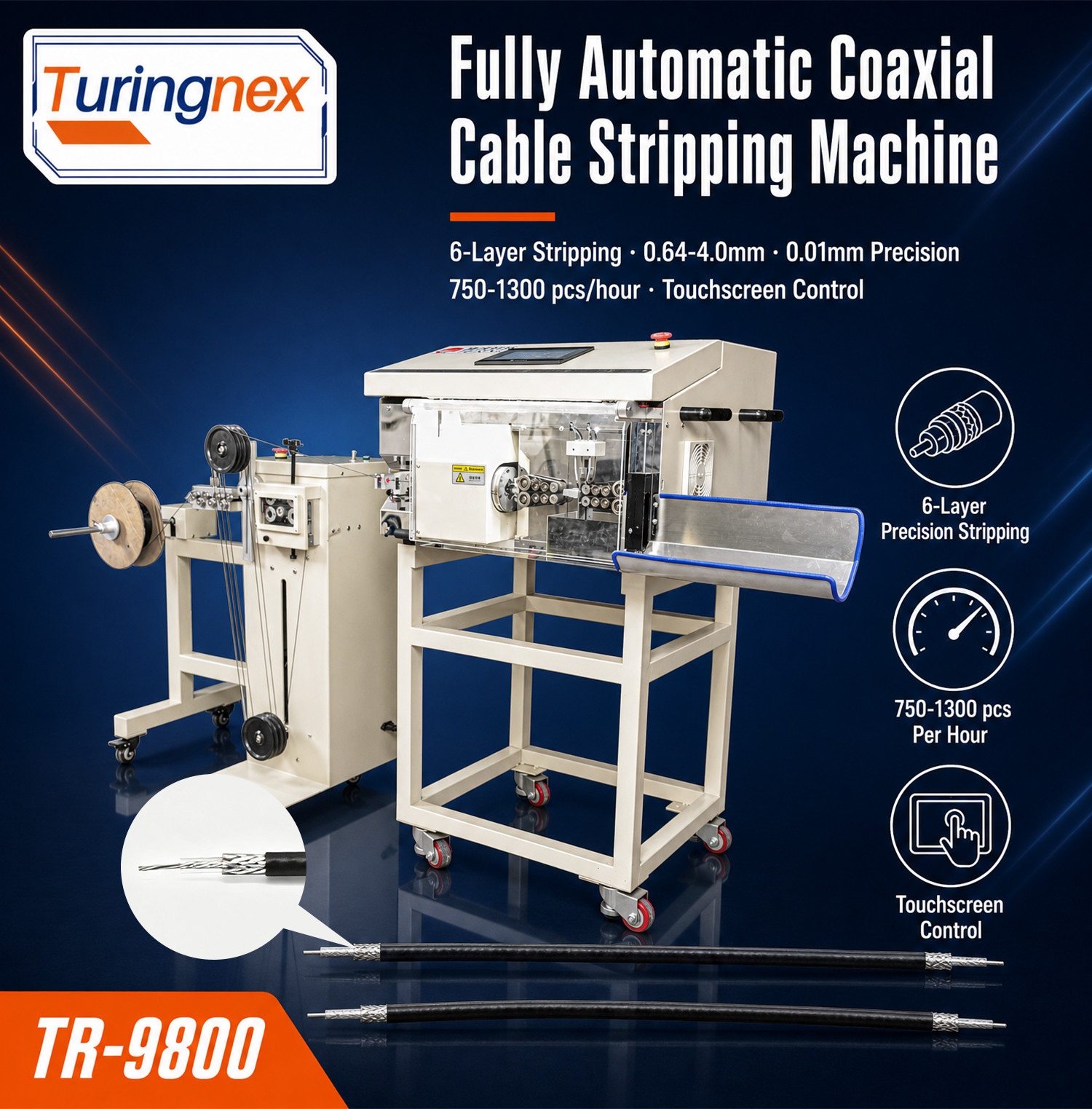

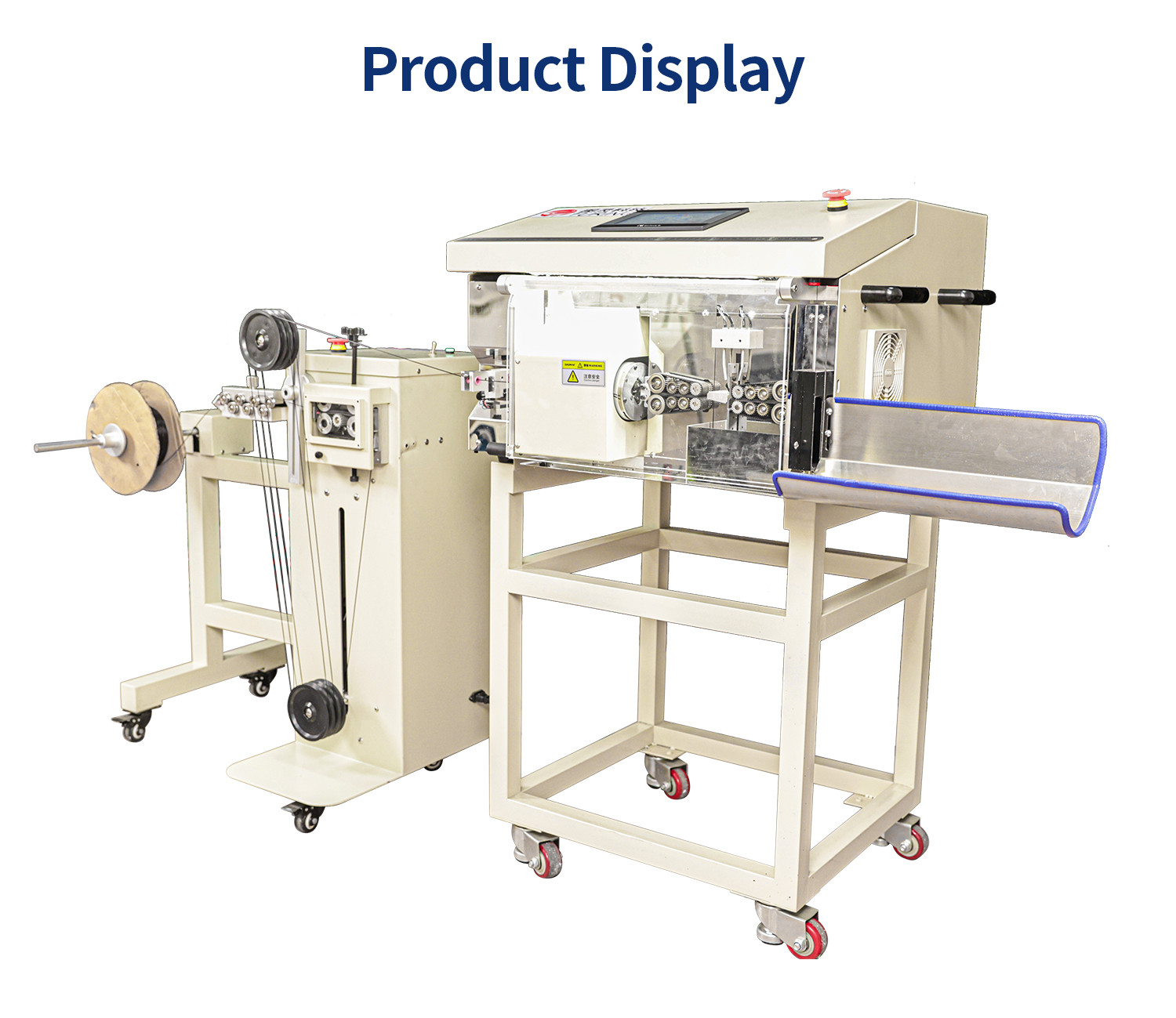

TR-9800 Fully Automatic Coaxial Wire Stripping Machine

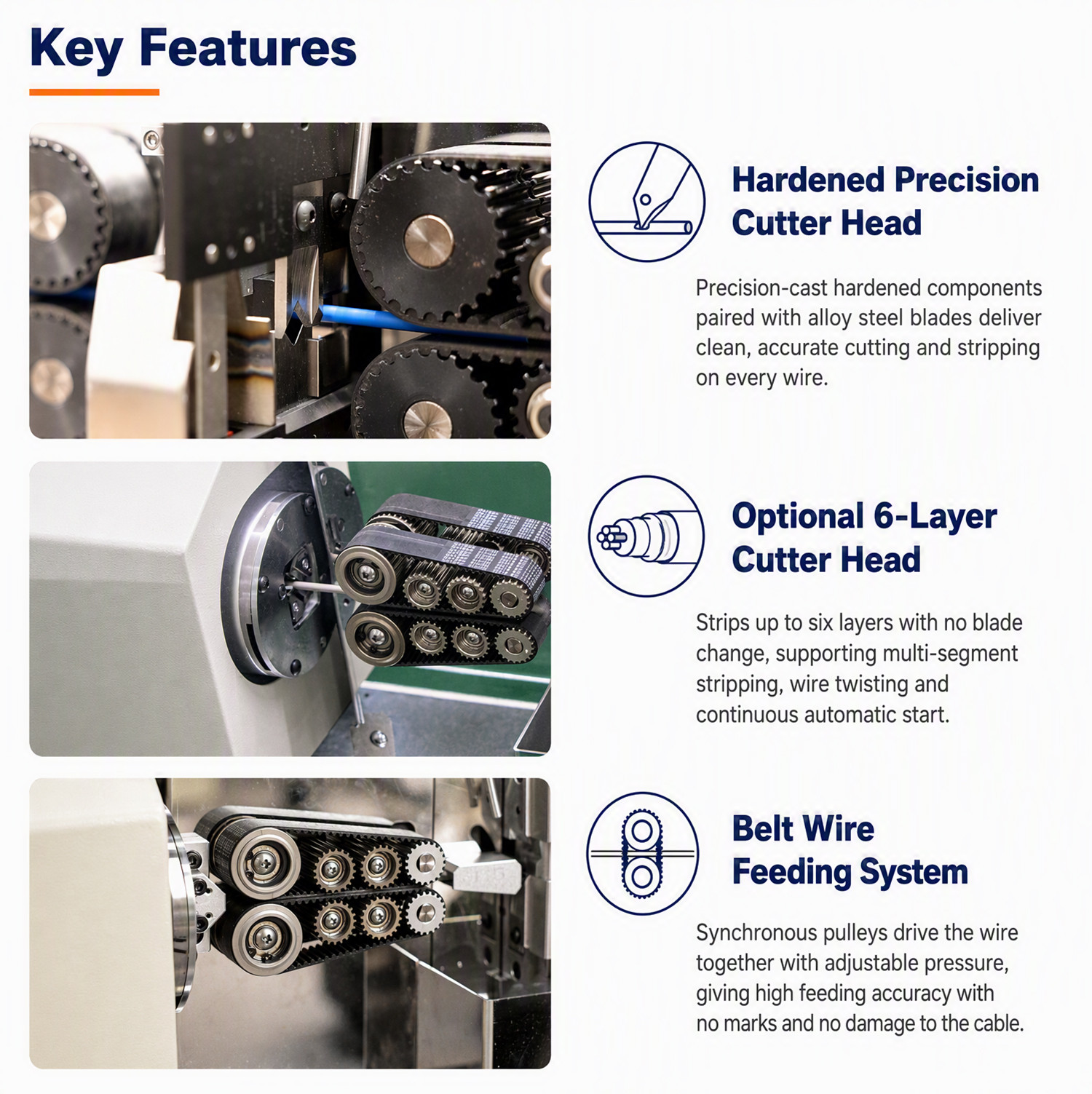

Product Highlights
1.High‑precision Processing
The setting accuracy for stripping and cutting depth reaches 0.01mm, meeting the fine‑stripping requirements of coaxial cables.
2.Multi‑layer Stripping Capacity
Supports up to 6‑layer stripping, suitable for processing coaxial cables with complex structures.
3.Premium Tooling Configuration
Equipped with imported tungsten steel and high‑speed steel cutters for long service life and high‑quality cutting edges.
4.User‑friendly Operation
Bilingual Chinese‑English touch‑screen interface; stores up to 40 sets of processing parameters for quick product change‑over.

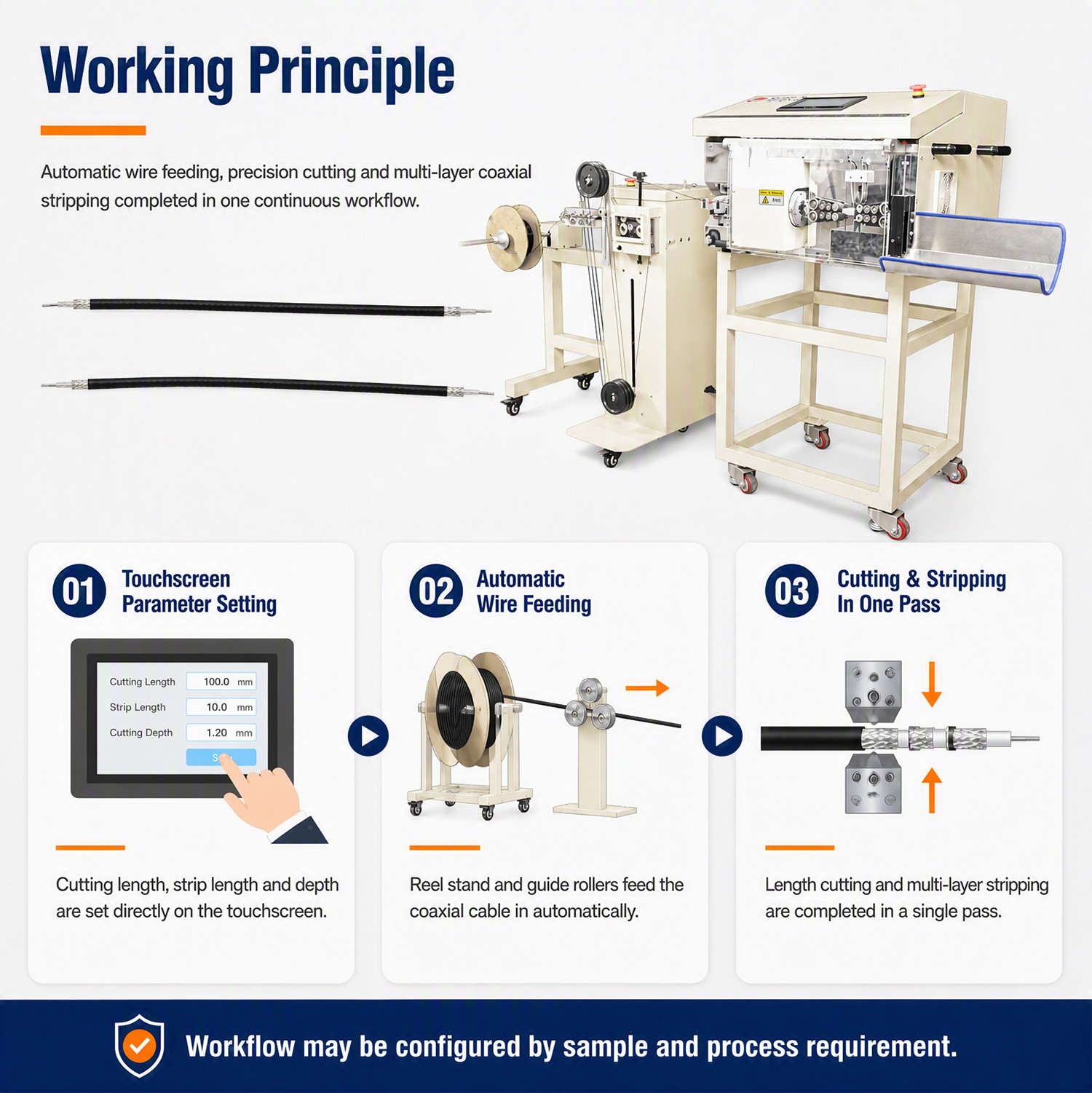

5.High‑efficiency Driving & Stripping Mechanism
Adopts motor plus ball‑screw drive, combined with rotary cutter and fixed stripping cutter. Productivity ranges from 750 to 1300 pieces per hour.
6.Wide Processing Range
Fits coaxial cables with diameters from 0.64‑4.0mm. Adjustable stripping lengths: max. 200mm on the right end and max. 45mm on the left end.
Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.
2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.

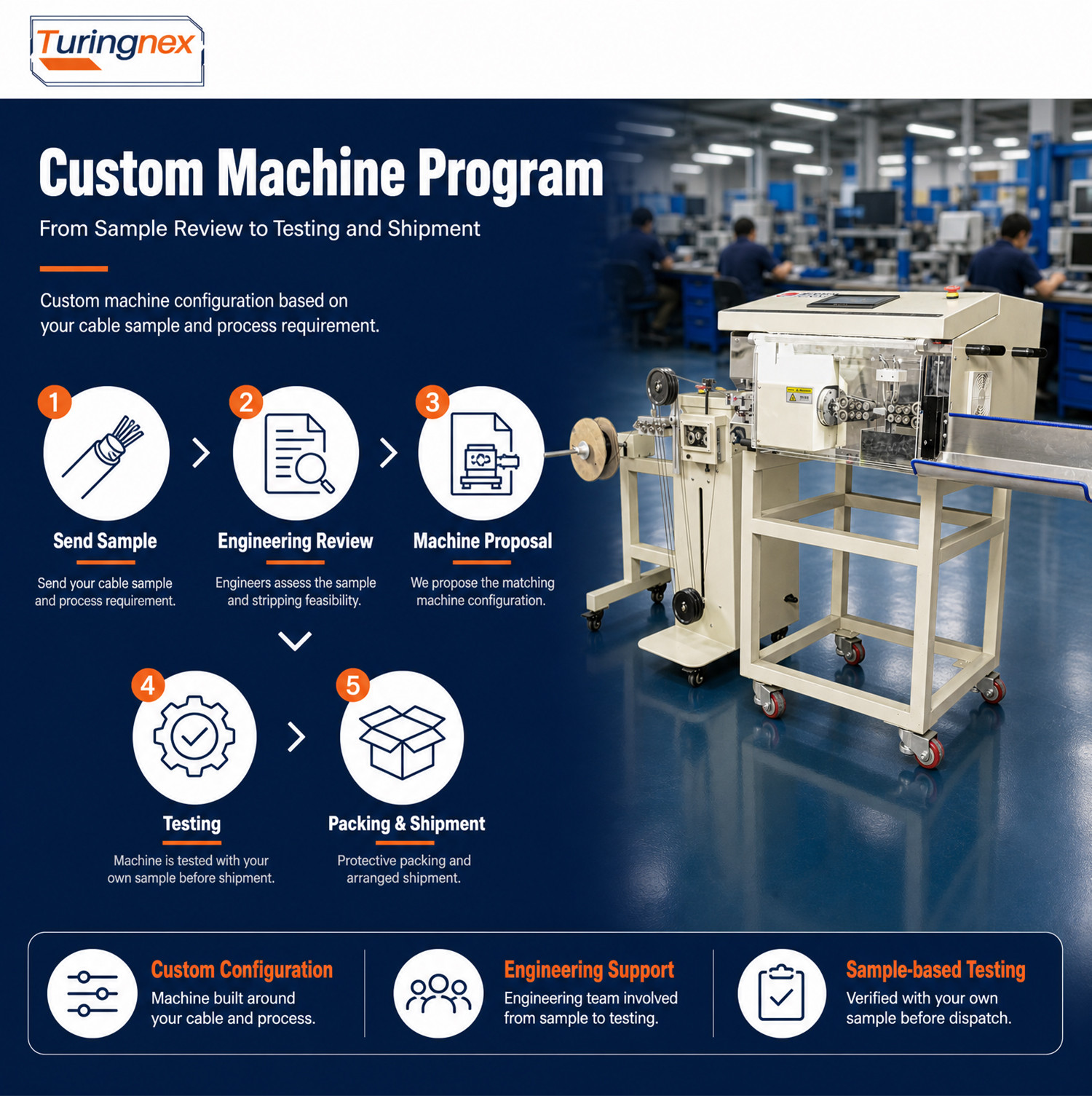

3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.
Model: TR-9800
Display mode: touch screen
Applicable wire: coaxial cable
Cutting wire diameter range: 0.64-4.0mm
Peeling length: right end max200mm, left end max45mm
Peeling length setting unit: 0.01mm
Cutting depth setting unit: 0.01mm
Maximum number of peeling layers: 6 layers
Display interface: Chinese and English LCD 153mm*85mm
Working power supply: AC220V 50/60HZ
Overall dimensions: 760*700*400mm
Power: 800W
Weight: 100kg

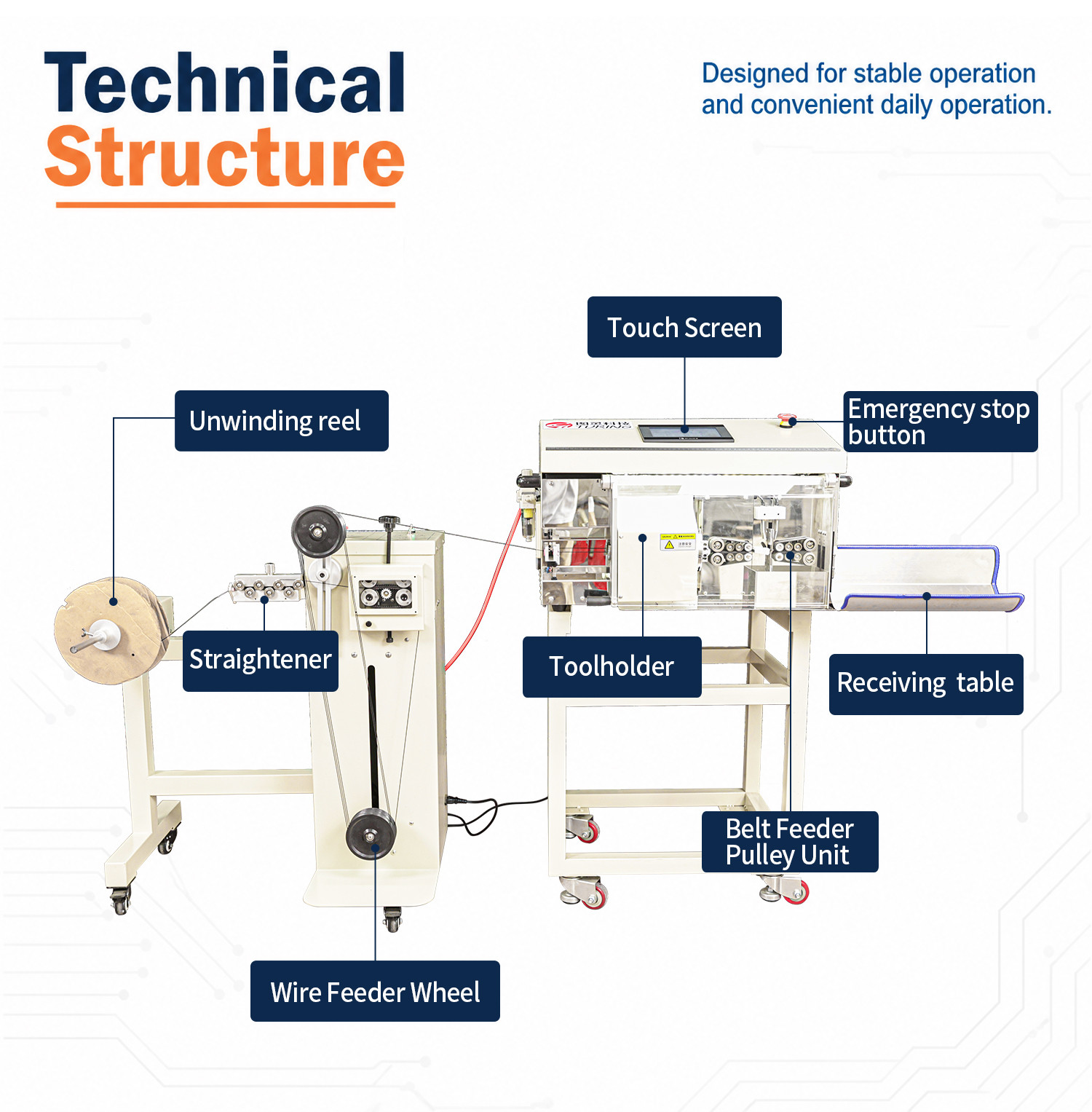

Driving method: motor\ball screw drive
Peeling method: rotating knife + cutting and peeling knife
Tool material: imported tungsten steel + imported high-speed steel
Working environment: -5-45 degrees, dry and vibration-free work surface
Storage capacity: 40 types of processing parameter data (limited to 40 types)
Production efficiency: 750-1300Pcs/h (depending on the material)

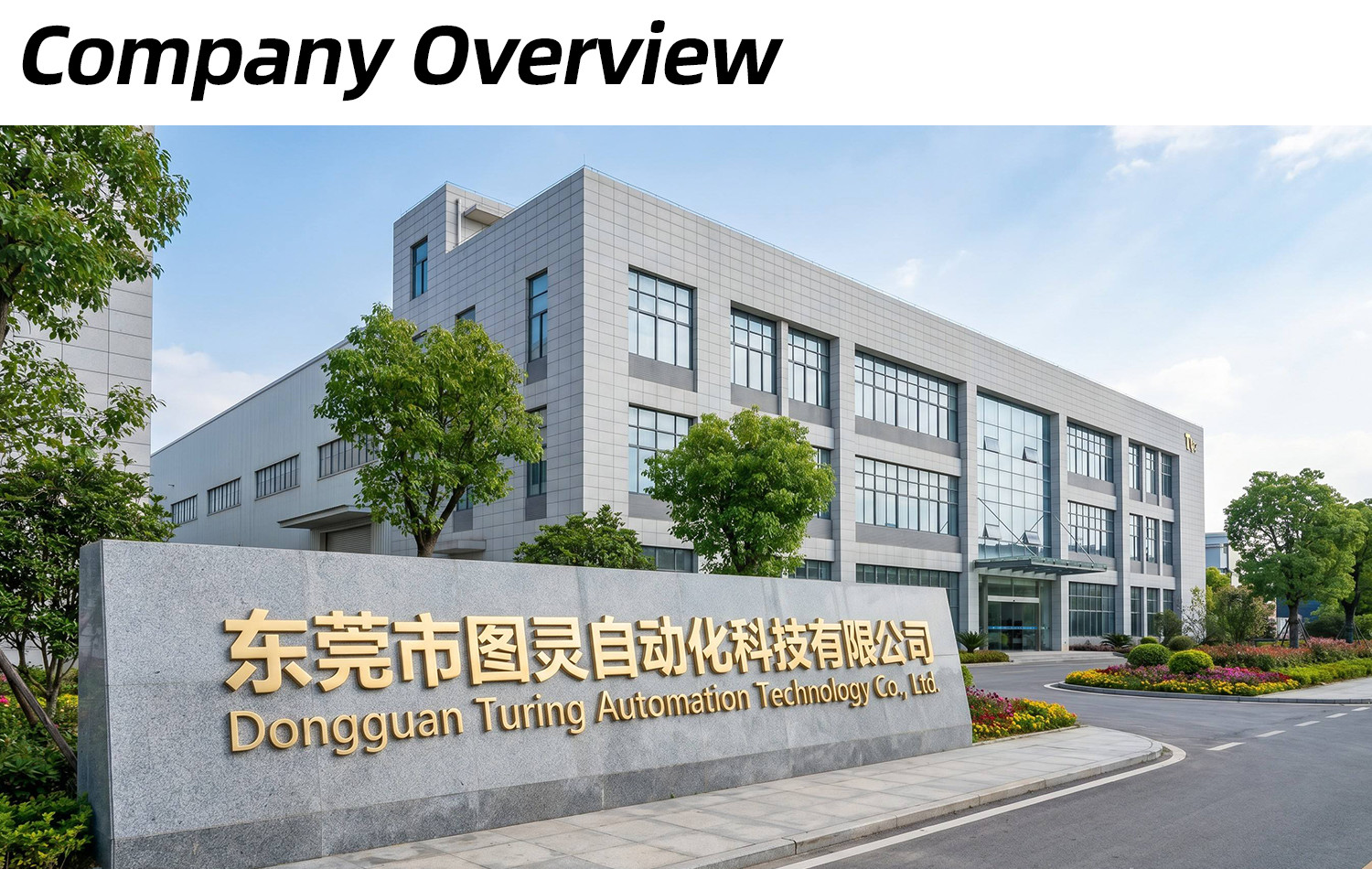

Dongguan Turing Automation Technology Co., Ltd. was established in 2008, located in Dongguan City, Guangdong Province. The company specializes in the production of: automatic terminal embossing machine, automatic terminal embossing tinning machine, ultra-quiet energy-saving terminal machine, mute copper tape machine, computerized wire cutting and stripping machine, coaxial stripping machine, automatic nylon zip tie machine, automatic winding and bundling machine, heat shrinkable tube computerized pipe cutting machine, terminal machine molds, knife molds and new energy automation wiring harness processing equipment and so on. Mainly serves in the automobile and motorcycle, electronics, home appliances, electrical and other wiring harness processing enterprises electrical.
