TR-201MS Turing Semi-auto Adhesive Velcro Die Cutting Machine

group name: Tape Cutting Machine

Min Order: 1 piece

brand name: Turing

model: TR-201MS

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Sun, 24 Nov 2024 06:43:40 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
Application Cutting Machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785

Packging & Delivery

Min Order1 piece

Briefing

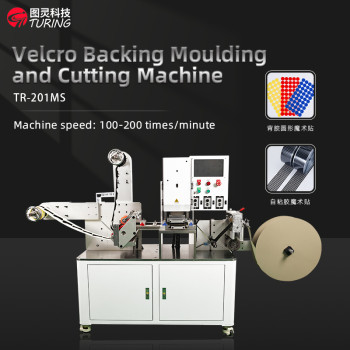

TR-201MS Turing Semi-auto Adhesive Velcro Die Cutting Machine

Detailed

TR-201MS Turing Semi-auto Adhesive Velcro Die Cutting Machine

Die cutting width：100x150mm

Machine speed：100-200 copies/minute

Stamping motors：Servo Electric 2KW Wo Chuan Brand

Feed motor：Servomotor 0.75Km Hogawa Brand

loader：AC motor 60w adjustable speed

Scrap winders：AC motor 60w adjustable speed

Finished product winders：AC motor 60w adjustable speed

machine size：2300x600x1500mm

Package Size：1350x650x1580mm

net weight：410kg

gross weight：480kg

Machine Advantages

1. According to the size of the product machine speed in a minute 100-200 knives,the smaller the product the faster the speed.

2. Small footprint, instead of the traditional die-cutting machine, low cost and shorttime to recover costs.

3. Automatic computer calculates the depth of the knife according to the thickness ofthe material.

4. A feeding roll, a finished roll machine, waste rewinding machine, convenientproduct storage and waste storage.

5. Exclusive design of compact knife mould, small gap, seconds to change the knifemould, the knife mould is cheap and good replacement, can be used for a variety ofshapes of knife mould.

6. Feeding shaft and winding shaft control the speed independently.

7.Well-designed safety cover to protect the safety ofemployees, the safety cover islowered when working.

8.Multi-stage card material positioning stopper design, to prevent the material to goout of the way to reduce the rate ofscrap.

9.Adopt 2 Wo Chuan servo motors to control the mould stamping and feeding to improve the working precision and life of the machine.

10.Humanised system design, Chinese and English touch screen, simple operation,easy to start.

11.Suitable for different materials of velcro.
