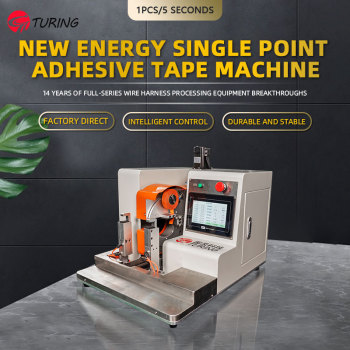

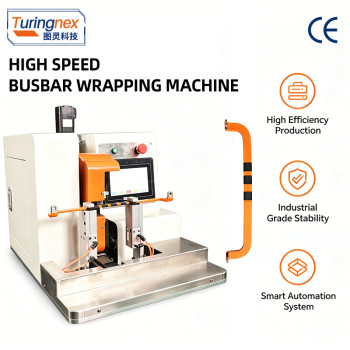

TR-307 New Energy Single-Point Tape Wrapping Machine
- group name
- Copper Strip Tape Wrapping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-307
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 17:46:51 GMT
Paramtents
Power AC220V/50HZ, 300W
Application Tape Wrapping Machine
Feature Stable Performance
Function Automatic Tape Winding Machine
Warranty 1year
Packging & Delivery
-
Min Order1 piece
Briefing
TR-307 New Energy Single-Point Tape Wrapping Machine
Detailed
TR-307 New Energy Single-Point Tape Wrapping Machine
Model TR-307
Function
1: Automatic winding and cutting
2: The number of winding turns is adjustable
Processing capacity 5-8s/pcs
Processing specifications Square: 10*20mm (maximum)
Round: Diameter 20mm (maximum)
Types of tape: PVC, flannel, acetic acid...
Tape width 10-25mm
Tape overlay accuracy deviation ±0.5mm
Control mode Full digital control
Power supply single-phase/three-phase AC220V
Compressed air 0.5MPa
Working temperature range 5℃~40℃ ambient temperature
Working humidity range: 30%~80%RH, no condensation
Warranty period: 2000 hours or 1 year (excluding consumable parts)
Equipment size: length 500mm×width 650mm×height 520mm
Equipment weight: about 40kg
HIGH-END WIRE HARNESS PROCESSING EQUIPMENT MADE WITH THE SPIRITOF JAPANESE CRAFTSMANSHIP.,
SAMSUNG, DJI AND OTHER FAMOUS BRANDS GLOBAL DESIGNATED WIRINGHARNESS EQUIPMENT SUPPLIERS
This machine is mainly used to wrap tape around the cables used inautomobiles, motorcycles and aviation to mark, fix and insulate them.
