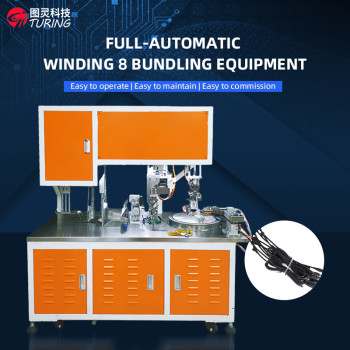

TR-K10 Fully-automatic Winding and Binding Machine
- group name
- Cable Winding and Tying Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-K10
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 17:08:10 GMT
Paramtents
Power AC220V/50HZ,
Application Winding and Binding Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-K10 Fully-automatic Winding and Binding Machine
Detailed
TR-K10 Fully-automatic Winding and Binding Machine
Applicable materials：Wire
Lap Speed：adjustable
Applicable
Ties：Weight of rubber-coated cores, ties and reels not exceeding 3 kg.
Auxiliary drive：Servo and stepper
Voltage
requirement：210V-240V 5A 50HZ
Finished
Appearance：Single Tie 8
Electricity
consumption：1.5 kWh for 12 hours
Theoretical
production：≤1500pcs/h (based on 2m common line)
Gas consumption：0.0316m³/min
Applicable
length：≤6m (depending on wire material)
Air Pressure ：0.5-0.6Mpa
Tie into a
diameter of：≤45mm
Leave the
head long：0-100mm
Applicable
Diameter：≤Φ7mm
Leave the
tail long：＜500mm
Winding
distance：160-280mm
Cylinder：Yadeke cylinder
Tie Length
Turns：Adjustable (160mm minimum spacing)
Number of
roots tied：configurable
Size：1550*800*1650mm
Winding and Binding Machine
1. TOUCH SCREEN
Intelligent control panel high-definition display intelligent key control More convenient to use
Multi-faceted display of operating status
2. BOBBIN WINDER
High quality material with high strength
CNC-machined oxidized surface ensures long time stable operation and high quality surface Running speed up to 1200 lines/hour
03 YADEKECYLINDER
Three-axis cylinders with cushioning from AT&TLong service life ,Safe maintenance is quaranteed
