TR-SL02 Semi-automatic Single Working Position Servo Connector Nut Screwing Machine
- group name
- Connector Nut Screwing Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-SL02
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 17:47:18 GMT
Paramtents
Power AC220V/50HZ,
Application Semi-automatic Servo Connector Nut Screwing Machin
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-SL02 Semi-automatic Servo Connector Nut Screwing Machine
work efficiency:1400 pieces/hour (length within 300mm)
work efficiency:1400 pieces/hour (length within 300mm)
Detailed

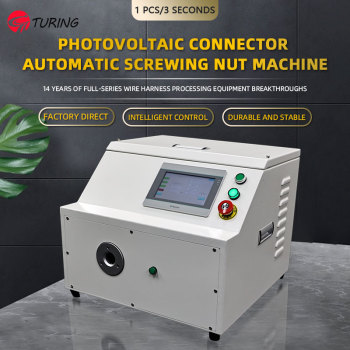

TR-SL02 Semi-automatic Single Working Position Servo Connector Nut Screwing Machine
Equipment name:Photovoltaic connector automatic screwing nut machine
Power:0.6kw
Power source:Ac 220v50/60hz
Operating mode:Semi-automatically
Size:L520*w520*h440 mm
Weights:60kg
Torque accuracy:+0.5
Wire diameter:5-35mm
Torque range:1.5-9.9 nm
Speed:3 seconds/cycle (depending on manual proficiency)
Torque frequency:10-3000hz
Ambient temperature:-5 to 40
Machine advantages:
Target products: servo connectors, photovoltaic connectors, photovoltaic connectors, plastic nut tightening, waterproof cable connectors, oil pipe nuts, air pipe nuts, energy storage connectors
1. Automatic torque setting and correction, compatible with nuts of different sizes, only need to replace the jig.
2. Single station, 4 workers on one machine.
3. The equipment has high tightening accuracy to prevent the problems of not tightening and bursting.
High-end wire harness processing equipment made with the spirit of japanese crafts manship.
Samsung, dji and other famous brands global designated wiring harness equipment suppliers
Applicable to a variety of new energy harness photovoltaic connectortorque operation, a variety of start mode ( touch screen start, footswitch start, inductive start) free choice, can be retrofitted with mesinterfaces and other components, the subsequent upgrade is easy.
