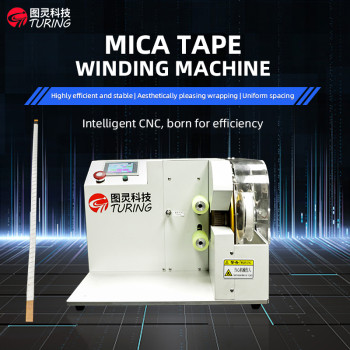

TR-401 Copper Tube Mica tape wrapping machine flat wrap tape equipment
- group name
- Copper Strip Tape Wrapping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-401
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 17:54:40 GMT
Paramtents
Power AC220V/50HZ,
APPLICABLEWIRE DIAMETER 3mm-40mm
Tape type PVC,PET,textured paper,Duct tape,Acetate Tape
Packging & Delivery
-
Min Order1 piece
Briefing
TR-401 Copper Tube Mica tape wrapping machine flat wrap tape machine
Detailed
TR-401 Copper Tube Mica tape wrapping machine
Equipment Model：TR-401
Operating Mode：Touch screen, foot pedal
Operating Mode：Full entanglement, point entanglement, multi-segment entanglement
Power Supply：AC110V~AC220V
Winding length：infinitely long
Winding wire diameter：3-40mm
Tape Material：PVC, acetate tape (without isolation paper), flannel, etc
Winding Maximum Efficiency：12R/S
Tape Specifications：Inside 4 38mm, outside s 140mm, width s 20mm (if there are other tape size.can be customized according to the requirements of the tape fixing frame)
Pneumatic：24P
Operation mode: touch screen, foot switch
Working mode: full wrapping, point wrapping, multi-stage wrapping
Power supply: AC210V～AC240V
Air pressure: ≥4P
Wrapping length: unlimited
Winding combined wire diameter: 1MM-30MM (can be customized if it is larger than 30)
Tape specifications: inner ￠38MM, outer ≤￠110MM, width ≤19MM (if there are other tape sizes, the tape holder can be customized as required)
Type of tape: PVC/flannel/acetate tape (no release paper), etc.
Operating temperature: 0-45°
Operating humidity: 10-90%RH (no condensation)
Cooling method: natural wind
Maximum winding frequency: 12R/S
