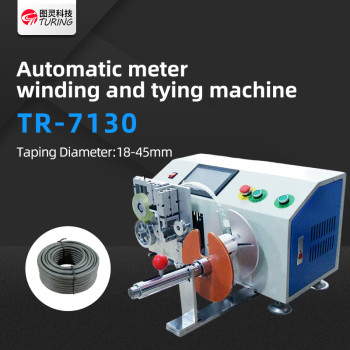

TR-7130 Desktop Wire Counting Meter Winding and Binding Machine
- group name
- Cable Winding and Tying Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-7130
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 18:24:54 GMT
Paramtents
Power AC220V/50HZ,
Application Winding and Binding Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-7130 Desktop Meter Meter Winding and Binding Machine
Detailed
TR-7130 Desktop Wire Counting Meter Winding and Binding Machine
18-45mm diameter Wire Tape Winding and Binding Machine
This machine increases the functions of counting meters, splitting, and cutting
based on a winding bundling machine.4 motors (winding motor and twisting
the motor is stepping motor) by PLC with touch-screen control meter length, wire
sending length, cut, and twist automatically. Adjustable turns and winding
speed. It applies to the AC power cord, DC power cord, USB cable, video
cable, and HDMI high-definition cable, Various types of transmission using
encapsulated core twist-tied into bundles can also be used for other use
encapsulated iron truss purposes, such as racks, sanitary hose, and other
Cable Cutting Winding and binding Machine,Wire Twisting Machine Manufacturing Equipment, Cable Twist Tie Machine, Wire Cable Winding, And Bunding Machine
Wire diameter 1 - 8 mm
Maximum winding length 30 meters
Finished product inner diameter 50 - 200 mm
Finished product outer diameter < 280 mm
Tying diameter 18 - 45 mm
Cable tie length 120 - 190 mm
Winding speed 1 - 13 circles/s
Tying speed 0.7 s/time
Power supply 110, 220 V (50 - 60 Hz)
Power 1500 W
Weight 80 kg
Dimension (L * W * H) 830 * 300 * 550 mm
