TR-303A Wire Cable Semi-auto Point Wrapping Tape Winding Machine
- group name
- Tape Wrapping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-303A
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 14:21:01 GMT
Paramtents
Power AC220V/50HZ, 300W
Application Cable Making Industry
Feature Stable Performance
Function Automatic Tape Winding Machine
Warranty 1year
Tape type PVC,PET,textured paper,Duct tape,Acetate Tape
Packging & Delivery
-
Min Order1 piece
Briefing
new energy multi-points wide tape winding machine for car cable/home appliance communication wire tape winding machine
Detailed

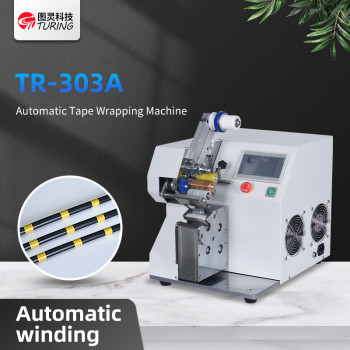

TR-303A Wire Cable Semi-auto Point Wrapping Tape Winding Machine
PRODUCT NAME:SINGLE POINT TAPE WINDING MACHINE
DIMENSIONS:530*400*510mm
WEIGHT:ABOUT 48KG
TAPE WIDTH:18-45mm
TAPE LENGTH:50mm
AIR PRESSURE:0.4MPa
INPUT VOLTAGE:220V/50HZ 200W
Used for winding the tape around the cable for automobile, motorcycle and aviation, and plays the role of marking, fixing and insulation.
Provides automation for the molding, placement and winding of complex wire bundles and improves production efficiency.
Operation mode: touch screen, foot switch
Working mode: full wrapping, point wrapping, multi-stage wrapping
Power supply: AC210V～AC240V
Air pressure: ≥4P
Wrapping length: unlimited
Tape specifications: inner ￠38MM, outer ≤￠110MM, width ≤19MM (if there are other tape sizes, the tape holder can be customized as required)
Type of tape: PVC/flannel/acetate tape (no release paper), etc.
Operating temperature: 0-45°
Operating humidity: 10-90%RH (no condensation)
Cooling method: natural wind
Maximum winding frequency: 12R/S
