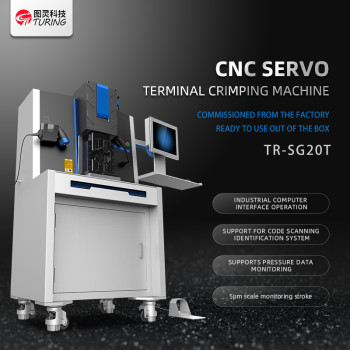

TR-SG20T_40T Intelligent Servo Terminal Crimping Machine
- group name
- New Energy Servo Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-SG20T_40T
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 19:51:13 GMT
Paramtents
Power AC220V/50HZ,
Application Intelligent Servo Terminal Crimping Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-SG20T_40T Intelligent Servo Terminal Crimping Machine
Lily +8613715588365
Lily +8613715588365
Detailed
TR-SG20T_40T Intelligent Servo Terminal Crimping Machine
Equipment Name:Intelligent servo terminal crimping machine
Equipment Model:TR-SG20T/40T
Display Mode:12.1-Inch industrlal computer
Activation method:In Positioning mechanism,foot switch, computer screen
Account Control:Fingerprint, code,password
Crimping Capability:20T/40T
Crimping stroke: 60mm/75mm
Crimping range:6-120 sq.ft. /16-300 sq.ft.
Crimping accuracy:+-0.03mm
Work efficiency: Approx.300-400times/hour(depending on harness size)
Rated power supply: AC 220V 50/60HZ
Motor power:Approx.2.5KW/4.5KW
Net weight:Approx.340kg/580kg
Machine size:767*611.5*1580mm(warning light included) /817*611.5*1800mm(warning light included)
SERVO MOTOR DRIVE
Overcome the traditional motor out-of-step problems,to achieve high-precision operation, with a fast response Simple manipulation,low noise, low energy consumption and so on.
INDUSTRIAL COMPUTEROPERATION
Touch screen operation, control system integration,data traceability Industry 4.0, can be docked with thefactory MODBUS system three levels of authority settings,more reliable parameter settings, can store 120 kinds ofprocessing parameters program, convenient debugging
