TR-SG4T 4T Intelligent Servo Terminal Crimping Machine
- group name
- New Energy Servo Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-SG4T
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sun, 24 Nov 2024 11:08:19 GMT
Paramtents
Power AC220V/50HZ,
Application Intelligent Servo Terminal Crimping Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-SG4T Intelligent Servo Terminal Crimping Machine
Lily +8613715588365
Lily +8613715588365
Detailed

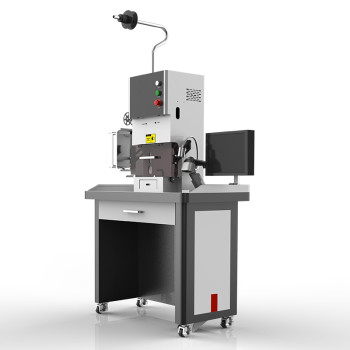

TR-SG4T 4T Intelligent Servo Terminal Crimping Machine
Device name：Intelligent Servo Terminal Crimping Machine
Device model：TR-SG4T 12.1"
Display mode：Industrial Computer Foot Switch
Rated Power Supply : AC 220V 50/60Hz
Starting mode：Computer Screen
Crimping capacity:4T
Crimping stroke:30mm
Crimping range:0.5-35 sq.ft.
Intelligent Servo Terminal Crimper:0.5-35 sq.ft
Crimping accuracy:+0.03mm
Operating efficiency:Approx.1800 times/hourdepending on harness size)
Rated power supply:AC220V 50/60Hz
Motor power:Approx.2KW
Net weight:Approx.130kg
Body size：900x540x14mm
01 Industrial computer
Built-in Windows 7 system,display touch operation,powerful, intuitive data
02Scanner gun
Scanning the code to read the productinformation and automatically retrievethe program parameters,which can savethe time of repeated parameter setting
03 Pressure monitoring
Real-time detection of the terminal,the pressure exceeds the set rangeof values,the device will be alarmed.
04 Cassette molds
Simple and easy to change, can bedisassembled at any time to changea variety of molds,firm and stable,to meet different work requirements
05 SERVO MOTOR DRIVE
Overcome the traditional motor out-of-step problems
to achieve high-precision operation,
with a fast response Simple manipulation, low noise, low energy consumption and so on.
06 OVERLOAD PROTECTION FUNCTION
When the load of the equipment is too large,
the power supply equipment will automatically disconnect the power supply(or the fuse will be blown directly) to preventthe main power line from overheating and damagingthe motor and other important parts due to overloading,
