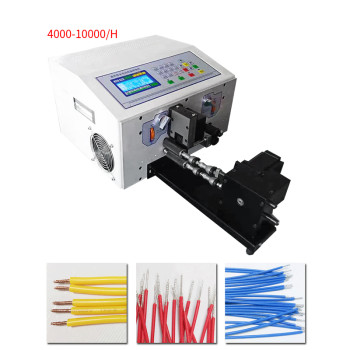

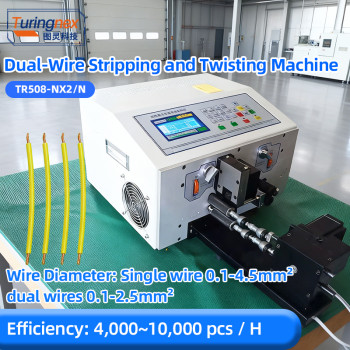

TR-508-NX2/N Ultra-short thin wire double wire stripping and twisting machine

TR-508-NX2/N Ultra-short thin wire double wire stripping and twisting machine
TR-508-NX2/N Ultra-short thin wire double wire stripping and twisting machineTR-508-NX2/N Ultra-short thin wire double wire stripping and twisting machineTR-508-NX2/N Ultra-short thin wire double wire stripping and twisting machineTR-508-NX2/N Ultra-short thin wire double wire stripping and twisting machineTR-508-NX2/N Ultra-short thin wire double wire stripping and twisting machine
group name
Computer Wire Stripping Machine
Min Order
1 piece
brand name
Turing
model
TR-508-NX2/N
Nearest port for product export
Yantian, Huangpu, Shekou, Nansha
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
Acceptable payment methods
T/T, MoneyGram, Westem Union, Cash
update time
Thu, 21 Nov 2024 17:09:29 GMT

Paramtents

  • Power AC220V/50HZ,

  • Name wire stripping machine

  • Feature Stable Performance

  • Warranty 1year

  • Contact Coco 0086-18666170785

Packging & Delivery

  • Min Order1 piece

Briefing

TR-508-NX2/N Ultra-short thin wire double wire stripping and twisting machine
Coco 0086-18666170785

Detailed

TR-508-NX2/N Ultra-short thin wire double wire stripping and twisting machine
Weight: 34KG
Power supply: AC220/110V/60HZ/50HZ
Motor Power: Rated 450W
Display mode: Chinese and English switching LCD display
Appearance size: 450X420X290
Cutting length: 1~10000mm
Stripping length: thread head 0-15mm, thread tail: 0-15mm
Cutting tolerance: ± (0.002xL)mm
Line width: 2-12P
Flat conduit size: length 100x width 22x height 4mm
Suitable stripping wire: flat cable
Blade material: imported high speed steel
Stripping speed: (L=100MM/hour) 3000-5000
Drive mode: four-wheel drive (silent hybrid stepper motor, each step advances 0.1mm

TR-508-NX2/N Ultra-short thin wire double wire stripping and twisting machine
