TR-608-MAX1-8/N 8-wheel lifting wheel 25 square wire stripping machine
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-608-MAX1-8/N
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 20:11:09 GMT
Paramtents
Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR-508-MAX1-8/N (8-wheel lifting wheel 25 square wire stripping machine)
Coco 0086-18666170785
Coco 0086-18666170785
Detailed

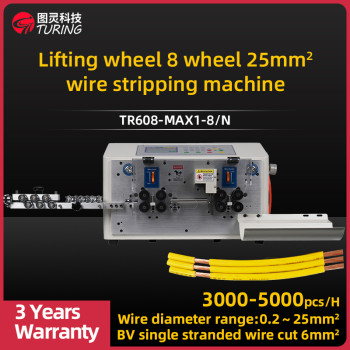

TR-608-MAX1-8/N 8-wheel lifting wheel 25 square wire stripping machine(with positive and negative straightener)
Weight: 50KG Dimensions: 410mm×515mm×345mm
Power: 650W Display mode: Chinese and English LCD liquid crystal display
Cutting length: 1-10000mm
Stripping length: thread head 0-50mm, thread tail: 0-50mm
Cutting tolerance: within 0.002×L (L=cutting length)
Cross-sectional area of cutting wire core: 0.2-25mm2 BV single-strand wire cuts 6 square meters
Maximum diameter of conduit: ￠13 Middle stripping: 13 places
Tool material: high-quality high-speed steel
Stripping speed: 100mm length as unit: 3000-5000 wires/hour
Drive mode: eight-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)
Wire stripping speed: cutter speed and wire feeding speed can be adjusted separately: 0 is the slowest, 9 is the fastest
