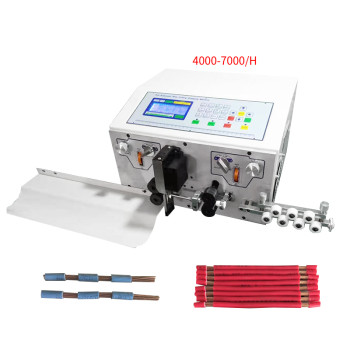

TR-JE2-N 10 Square jumper wire stripping machine with Positive and negative straightener optional
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-JE2-N
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Mon, 20 May 2024 13:19:27 GMT
Paramtents
Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
Lily +8613715588365
Detailed
Weight: 31KG
Power supply: AC220/110V/60HZ/50HZ
Motor Power: Rated 450W
Display mode: Chinese and English switching LCD display
Appearance size: 450X420X290
Cutting length: 1～10000mm
Stripping length: thread head 0-50mm, thread tail: 0-50mm
Cutting tolerance: ± (0.002xL)mm
Middle stripping and cutting: thirteen places
Cutting wire core section: 0.1～10mm2 BV single-strand wire cutting 6 square
Maximum diameter of conduit: ￠10
Suitable for stripping wire: PVC, Teflon, glass wire
Blade material: imported high speed steel
Stripping speed: (L=100MM/hour) 3000-5000
Drive mode: four-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)
Wire stripping speed: cutter speed and wire feeding speed can be adjusted separately: 0 is the slowest, 9 is the fastest
Suitable for stripping wire: PVC, Teflon, glass wire, silicone wire
