TR-508-BHT2/N Roller flat sheath wire stripping machine
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-508-BHT2/N
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 19:48:11 GMT
Paramtents
Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-508-BHT2/N Roller flat sheath wire stripping machine
Lily +8613715588365
Lily +8613715588365
Detailed

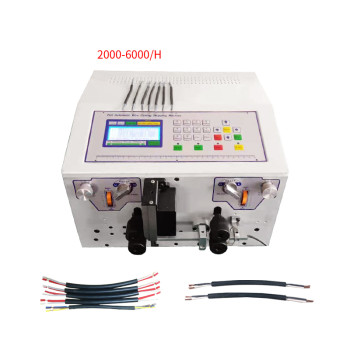

TR-508-BHT2/N Roller flat sheath wire stripping machine
Weight: 31KG
Power supply: AC220/110V/60HZ/50HZ
Motor Power: Rated 450W
Display mode: switch LCD display between Chinese and English
Appearance size: 450X420X290
Cutting length: 1～10000mm
Stripping length: thread head 0-150mm, thread tail: 0-100mm
Cutting tolerance: ± (0.002xL)mm
Flat conduit size: length 100x width 16x height 6mm
Suitable for stripping wire: PVC, Teflon, glass wire
Blade material: hard tungsten steel
Stripping speed: (L=100MM/hour) 3000-5000
Drive mode: four-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)
Wire stripping speed: cutter speed and wire feeding speed can be adjusted separately: 0 is the slowest, 9 is the fastest
Thefully automatic computerized wire stripping machine produced byourfactoryis widely used in wire harness processingin variousindustriessuch as wire harnesses,automotiveelectricalappliances, instruments andmeters, lamps, household appliances, etc., such as: single-stranded wire,multi-stranded wire, sheathed wire, etc.The processingmethods are: cutting,strippinghead and tail, middle stripping, bending, twisting, etc.Themaximum processingcross-sectional areais 0.1-90mm2, and the maximumlength of the cuttingsection is 100 meters. The main function of themachine is to strip the plastic sheath and the metal core of the wire.
