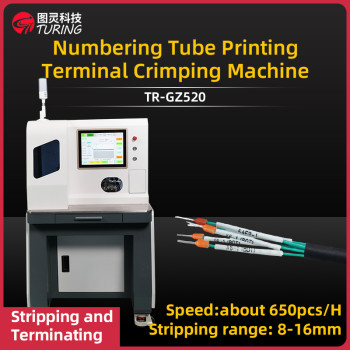

TR-GZ520 Semi-Auto Tube Type Number Tube Terminal Crimping Machine

group name: Inserting Tube Terminal Crimping Machine

Min Order: 1 piece

brand name: Turing

model: TR-GZ520

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Sat, 23 Nov 2024 18:01:40 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
Application Number Tube Terminal Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365

Packging & Delivery

Min Order1 piece

Briefing

TR-GZ520 Semi-Auto Tube Type Number Tube Terminal Machine
Lily +8613715588365

Detailed

TR-GZ520 Semi-Auto Tube Type Number Tube Terminal Crimping Machine

Control method:Man-machine interface, electronic touch control, pneumaticcontrol

Operating mode:Auto-triggered run and manualoperation

Wires pecification:Suitable for BVR line 0.5, 075, 1.0, 1.5, 2.5, 4.0 square

Peeling length:Stripping length range 8-16mm

Terminal specification:Terminal insulator length within 7.5mm, conductor lengthwithin 12mm

Crimp shape:Quadrilateral crimp (imitation square)

Replacement product:Manually replace relevant fixtures and adjust the vibrating plateelectric memory stripping length and stripping skin depth.t takes about 3 minutes to replace a set of terminal fixtures

Test items:Terminal presence detection, safety door opening detection on the right side

Power supply:External input power AC220V /50H (single phase) 10A: internal External power supply DC24V

Air source:0.5-0.8Mpa (please use a stable clean and dry air source, connectThe air intake source should be kept not lower than 0.5Mpa)

Dimensions:L730*W760*H1400mm(excluding protrusions)

Weight:100KG

Number tube length:10-32mm

Sheath Peeling length:275mm(confirm with incoming samples)

Speed:About 650PCS/H
