TR-GD17 Semi-Auto Tube Type Pre-insulated Terminal Crimping Machine
- group name
- Semi-automatic Bulk Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-GD17
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 17:03:49 GMT
Paramtents
Power AC220V/50HZ,
Application Pre-insulated Terminal Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-GD17 Semi-Auto Tube Type Pre-insulated Terminal Machine
Lily +8613715588365
Lily +8613715588365
Detailed

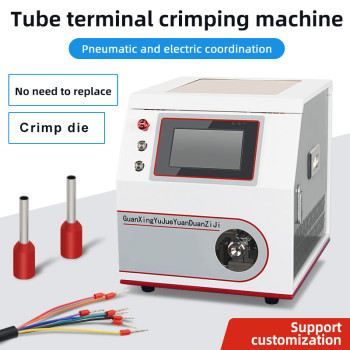

Product name: Tube Terminal Crimping Machine
Control method:Man-machine interface, electronic control,pneumatic control
Operating mode:Auto-triggered run and manual operation
Wire specification:Suitable for BVR hard line 0.5, 0.75, 1.0, 1.5, 2.54.0 square
Crimp shape:Quadrilateral crimp (imitation square)
Replacement product:Manually replace related fixtures, adjust the vibration plateand electric memory adjustment
Production capacity:2.5S/thread (considered as a single operation cycle of themachine)
Test items:Terminal presence detection, safety door opening detectionon the right side
Operating temperature:10~20°C (the ambient temperature of the machine)
Working humidity:30~80%HR(no condensation)
Dimensions:W350mmxL450mmxH400mm (excluding protrusions)
Weight：About 40KG
Terminal specification:Tube type pre-insulated terminal, insulator (round)The length is within 7.5mm.
Power supply:External input power supply AC220V 50/60HZ10A: Internal power supply DC24V, DC12V
Gas source:0.6-08MPA(please use stable clean and dry Air source.access to the air source should be kept not lower than 06MPA)
