TR-30T Semi-Automatic 30T Servo Terminal Crimping Machine
- group name
- New Energy Servo Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-30T
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 19:22:29 GMT
Paramtents
Power AC220V/50HZ,
Application Terminal Crimping
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-30T Semi-Automatic 30T Terminal Crimping Machine
Lily +8613715588365
Lily +8613715588365
Detailed

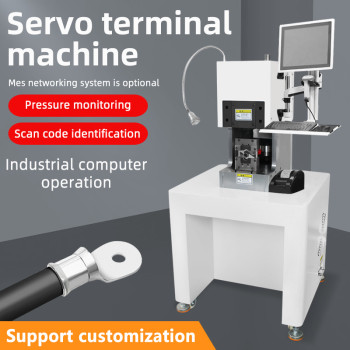

TR-30T Semi-Automatic 30T Servo Terminal Crimping Machine
Product name:TR-30T intelligent servo crimping machine
Ability to work:0-70,120,300square
Crimp force:10，20，30T
Hydraulic boost stroke:30MM(changeable)
Work efficiency:(times/minute) 20-40
Power supply:AC220V 50/60HZ
Dimensions:(L)730*(W)670*(H)1430MM
Weight:100/150KG
Installation mold type:2000 single-grain mold, 4-point mold, new energyshielding ring with eight sides Form crimping die, upperand lower punching dies, wide application range.
Mes networking system is optional
Pressure monitoring scan code identification Industrial
computer operation
Features
The servo motor is precisely controlled, with high efficiency and easyoperation, which can reduce Labor force, applicable to the integrationof manual operation and automated assembly line Operation.
Simple structure,convenient operation,superior performance, nohydraulic system and Noise generated during electric standby.
The height,speed, stroke,Pressure size and stamping time.
It is suitable for all kinds of new energy, electric power, industrial andother large square wire harnesses.
