TR-09G Fully Automatic End-piercing Number Tube Machine
- group name
- Inserting Tube Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-09G
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Mon, 20 May 2024 19:32:24 GMT
Paramtents
Power AC220V/50HZ,
Application End-piercing Number Tube
Feature Stable Performance
Warranty 1year
Control Servo and Step motor
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing

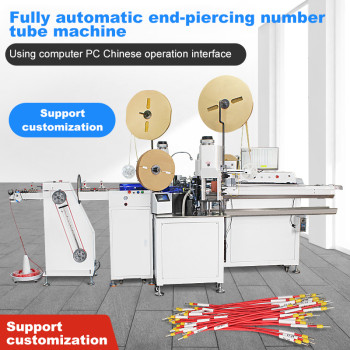

TR-09G Fully Automatic End-piercing Number Tube Machine
Virtual reality 0.75-2.5mm2 , Number Tube length: 13-30mm
Virtual reality 0.75-2.5mm2 , Number Tube length: 13-30mm
Detailed
TR-09G Fully Automatic End-piercing Number Tube Machine
Product name：Fully automatic end-piercing number tube machine
Wire diameter range：Virtual reality 0.75-2.5m2 (other wire numberscan be customized)
Tangent length:120-9000mm cutting error<+(1+0.005xL)
Number tube length:13-30mm
Terminal type:Tubular,0T，UT.various serial terminals
Productivity:When the wire needs to be twisted and then crimpedthe speed is 650-800PCS/hour
Power supply:AC220V 50HZ 4KW
Air pressure:0.4-0.6Mpa (air source is clean and stable)
Weight:850 kg
Dimensions:3m(L)x2.3m(W)x1.8m(H)
Multifunctionaldebugging
Marking, off-line, threading, sin-gle/double terminal crimping can be
completed at one time, with variousdetection and wire specificationsnumber tube font debugging functions.
End mold
The crimping terminal can beturned 90 °,the servo gives in-structions, and it is equippedwith cast iron terminal head andprecision steel casting mold, sothe production is stable and ac-curate at one time. Suitable forhorizontal, straight and flag typeotp moulds.
