TR-01A Fully Automatic Double-end Terminal Crimping Insert Shell Tin Dipping Machine
- group name
- Plastic Shell Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-01A
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 16:53:41 GMT
Paramtents
Power AC220V/50HZ,
Application Double-end Terminal Crimping Insert Shell Tin Dipp
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
Fully Automatic Double-end Terminal Crimping Insert Shell Tin Dipping Machine
Lily +8613715588365
Lily +8613715588365
Detailed

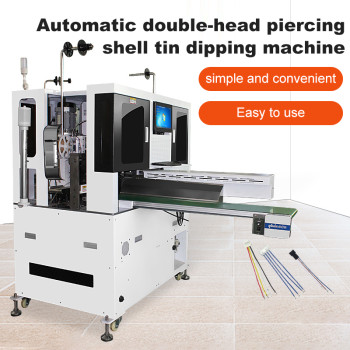

TR-01A Fully Automatic Double-end Terminal Crimping Insert Shell Tin Dipping Machine
Product name：TR-01A Automatic double-head piercing shell tindipping machine
Physical dimension:L2000W 1750*H 2060(mm)
Production capacity：12000-16000Pin/H (depending on the terminal plastic shelland wire)
Processing range：0.8-- 3.96 pitch (shell range 1Pin-16Pin)
Processing length：38mm-800mm (please consult the manufacturer forspecial length)
Processing wire ：AWG16-AWG32 (depending on the material)
Precision：0.2 soil 0.L (depending on the material) 2%
Peeling length:A-end 0.5-7mm, B-end 0.5-7mm (special can be customized)
Peeling accuracy：Soil 0.05 (depending on the material)
Applicable powersupply:220 V 50/60 Hz (single phase)
Working power：250W
Applicable air source:0.5-0.7MPa (need to use clean and dry air source)
Function:Wire cutting, stripping, twisting, single-end crimping andpiercing, single-end tinning, double-end crimping andsocketing, single-end crimping and plugging the otherend of the socket, classification of good and defectiveproducts,automatic sorting
Test your ability：Wire presence or absence alarm, wire knotting alarm, tin wireshortage reminder, gas source pressure alarm, pressuremanagement device. visual detection device
